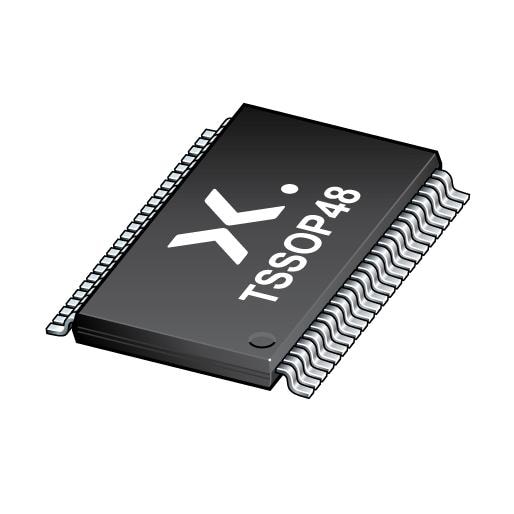

Nexperia 74LVTN16244BDGG,11 Buffers & Line Drivers 3.3 V 16-bit transceiver; 3-state

Width: 6.2 mm (Max)

Height: 1.05 mm (Max)

Length: 12.6 mm (Max)

Function: Buffer/Line Driver

Polarity: Non-Inverting

Logic Type: BiCMOS

Technology: BiCMOS

Output Type: 3-State

Unit Weight: 421 mg

Logic Family: LVTN

Mounting Style: SMD/SMT

Input Signal Type: Single-Ended

Quiescent Current: 4 mA

Number of Channels: 4 Channel, 2 Channel, 1 Channel

Supply Current - Max: 6 mA

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.7 V

Number of Input Lines: 16 Input

Number of Output Lines: 16 Output

Propagation Delay Time: 1.8 ns

Low Level Output Current: 64 mA

Operating Supply Voltage: 3.3 V

High Level Output Current: 32 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
