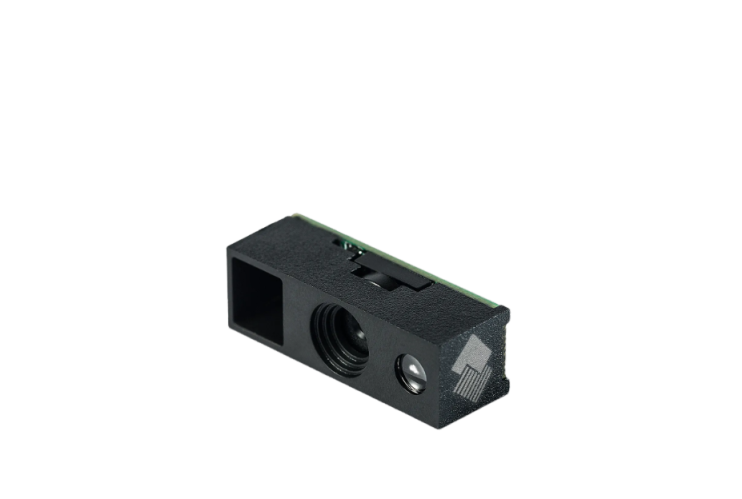

NEWLAND N1 ເຄື່ອງຈັກສະແກນບຣາໂຄ໊ດ (60mm-350mm)
Image Sensor: 640 * 480 CMOS
Illumination
White LED
Red LED (625nm)
Symbologies
2D: PDF417, QR Code, Micro QR, Data Matrix, Aztec
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey
Resolution: ≥3mil
Typical Depth of Field
EAN-13: 60mm-350mm (13mil)
Code 39: 40mm-150mm (5mil)
PDF417: 50mm-125mm (6.7mil)
Data Matrix: 45mm-120mm (10mil)
QR Code: 30mm-170mm (15mil)
Scan Angle
Roll: 360°, Pitch: ±60°, Skew: ±60°
Min. Symbol Contrast: 25%
Field of View
Horizontal 42°, Vertical 31.5°
Decode Capability: 1D, 2D
Interface: USB, TTL-232
Dimension: 21.5×9.0×7.0mm
Weight: 1.2g
