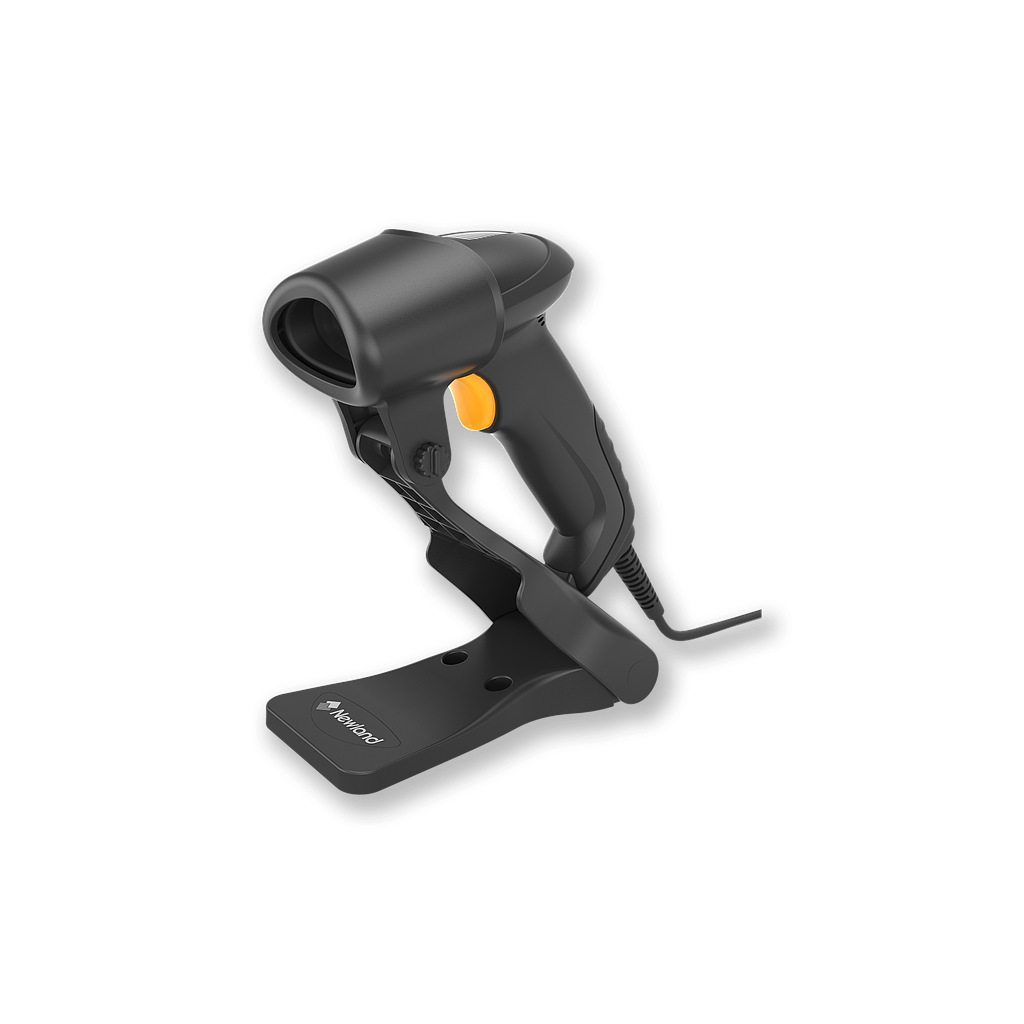

NEWLAND HR3280-S5 ເຄື່ອງສະແກນມືຖື (1D, 2D, 1280 x 800px)
Data Capture
1D:All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey.
2D:All major 2D symbologies, including PDF417, QR Code, Data Matrix, Aztec, Maxicode.
Image Sensor:CMOS 1280 x 800
Aiming:Green LED
Illumination:Red LED (625±10 nm) / White LED
Scan Modes:Trigger (Level, Pulse), Sense, Continuous Mode
Scan Rate:60 frames per second
Depth of Field EAN 13 (13mil):45-510mm
Depth of Field Code 39 (5mil):75-220mm
Depth of Field PDF417 (6.67mil):70-215mm
Depth of Field DataMatrix (10mil):50-220mm
Depth of Field QR (15mil):20-330mm
Field of View Horizontal:39°
Field of View Vertical:24°
Scan Angle Roll:360°
Scan Angle Pitch:±55°
Scan Angle Skew:±55°
Minimal Print Contrast:25%
Performance
Processor:1GHz, X1500
Physical
Buttons:Trigger
Current @ 5VDC Operating:238.2mA (typical), 260.5mA (max.)
Current @ 5VDC Standby:71.3mA
Dimensions (mm):113.5(W) × 73.3(D) × 159.0(H)
Input Voltage:5VDC ± 5%
Interfaces:RS-232, USB
Material:PC, ABS
Notifications:Beep, LED indicator
Power Consumption:1289.6mW (typical)
Power Supply Input:DC5V, 1.5A
Power Supply Output:AC100~240V, 50~60Hz
Weight:162g
Environmental
Ambient Light:0 ~ 100000 lux (natural light)
