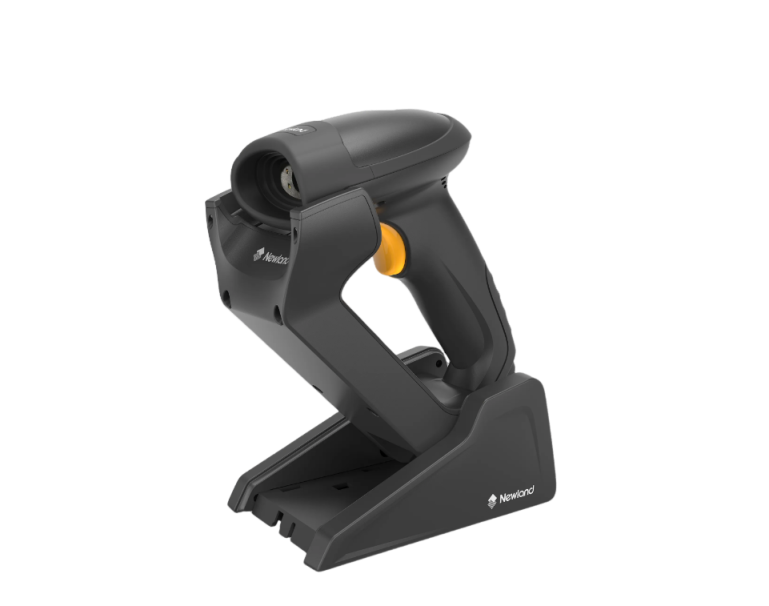

NEWLAND HR32-BT ເຄື່ອງສະແກນມືຖືແບບໄຮ້ສາຍ (50mm-495mm)
Image Sensor: 1280×800 (megapixel) CMOS
Illumination: White LED & Red LED (622nm-628nm)
Symbologies: PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode. EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128.
Resolution: ≥3mil
Typical Depth of Field
50mm-495mm (13mil)
85mm-220mm (5mil)
70mm-215mm (6.7mil)
50mm-220mm (10mil)
20mm-325mm (15mil)
Scan Angle: Pitch: ±55°, Roll: 360°, Skew: ±55°
Min. Symbol Contrast: 25%
Field of View: Horizontal 39°, Vertical 24°
Aiming: Green LED (515nm-535nm)
Wireless
Communication Modes: Synchronous, asynchronous and batch mode
Radio Technology: Bluetooth 5.0
Communication Distance: 50m/164ft (direct line of sight in open air)
Battery: 2400 mAh lithium-ion battery
Expected Charge Time: 4 hours (with power adapter)
Expected Battery Life: 12 hours of continuous operation (scan once per 6 seconds)
Memory Capacity: ≥15000 pieces of Code 128 (20 byte of each Code 128)
Physical
Dimensions (L×W×H)
Scanner: 113.5(W)×73.3(D)×159.0(H)mm
Weight
Scanner: 217g
Operating Voltage: 5VDC±5%
Interfaces: RS-232, USB
Notification: Beep, LED
Environmental
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 5%~95% (non-condensing)
ESD: ±8 KV (air discharge); ±4 KV (contact discharge)
Drop
Scanner: 1.5m/4.9ft Cradle: 1m/3.3ft
Sealing
Scanner: IP42
Battery Charge Temperature: 0°C to 45°C (32°F to 113°F)
Certifications
Certificates & Protection: Part15 Class B, CE EMC Class B. RoHS
