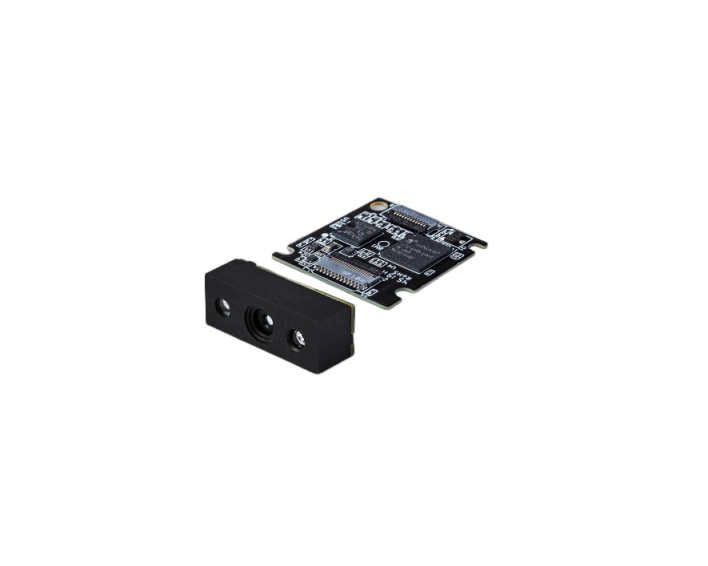

NEWLAND EM50S-20 ເຄື່ອງຈັກສະແກນບຣາໂຄ໊ດ (70mm-500mm)
Decode Capability: 1D, 2D, Postal, OCR
Interface: USB, TTL-232
Illumination: White LED
Dimension
Imager: 21.5×10.2×8.6mm Decoder board: 21.5×21.5×4.2mm
Weight: 4g
Image Sensor: 1280×800 CMOS
Illumination: White LED
Aimer: 650nm laser diode
Symbologies
2D: PDF417, MicroPDF417, QR / MicroQR, DataMatrix, Aztec, HanXin, MaxiCode, GridMatrix, Code One, DotCode
1D: EAN UPC, Coupon, GS1 Composite, CodaBar, Interleave 25 / ITF-14 / ITF6, Matrix 25, Industrial 25, COOP 25, Standard 25, China post 25, Code 39, Code 93 / Code 93i, Code 128 series, Plessey, MSI Plessey, Code11, RSS, Code 49, Code 16K
Postal: USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX, Australian Postal, Japanese Post
OCR: Passport OCR, Passport Visa, TD1, TD2, etc.
Resolution: ≥3mil
Typical Depth of Field
EAN-13: 70mm-500mm (13mil)
Code 39: 90mm-265mm (5mil)
PDF417: 70mm-225mm (6.7mil)
Data Matrix: 65mm-215mm (10mil)
QR Code: 40mm-295mm (15mil)
Min. Symbol Contrast: 25%
Scan Angle: Roll: 360°, Pitch: ±60°, Skew: ±60°
Field of View: Horizontal 42°, Vertical 28°
