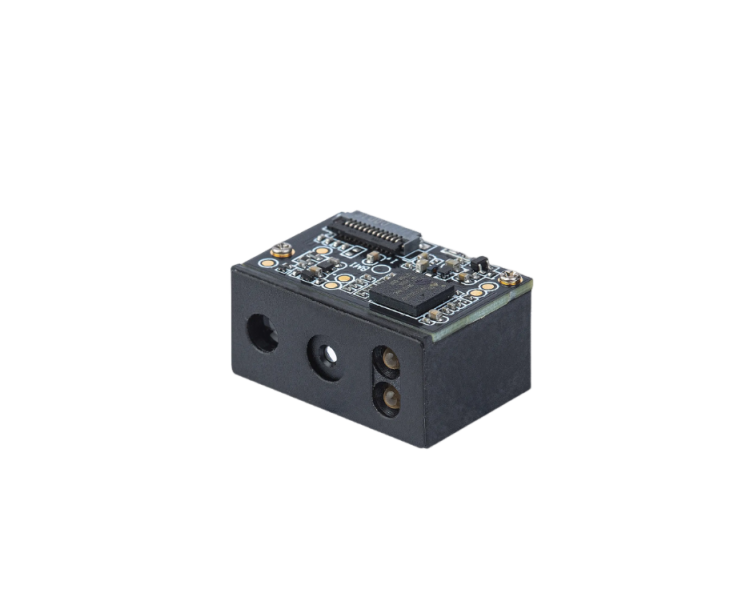

NEWLAND EM3296 ເຄື່ອງຈັກສະແກນບຣາໂຄ໊ດ (50mm-365mm)
Image Sensor: 640 * 480 CMOS
Illumination: Red LED 625±10 nm
Symbologies
2D: PDF417, QR Code, Micro QR, Data Matrix, Aztec
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, AIM 128, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey
Resolution: ≥4mil
Typical Depth of Field
EAN-13: 50mm-365mm (13mil)
Code 39: 40mm-165mm (5mil)
Data Matrix: 35mm-115mm (10mil)
QR Code: 35mm-145mm (15mil)
PDF 417: 45mm-115mm (6.67mil)
Scan Angle
Roll: 360°, Pitch: ±50°, Skew: ±60°
Min. Symbol Contrast: 25%
Aiming: Red LED 625±10 nm
Field of View
Horizontal 44°, Vertical 33.2°
Decode Capability: 1D, 2D
Form Factor: All-in-One
Interface: USB, TTL-232
Illumination: Red LED
Dimension: 21.8×15.3×11.8mm
Weight: 4g
