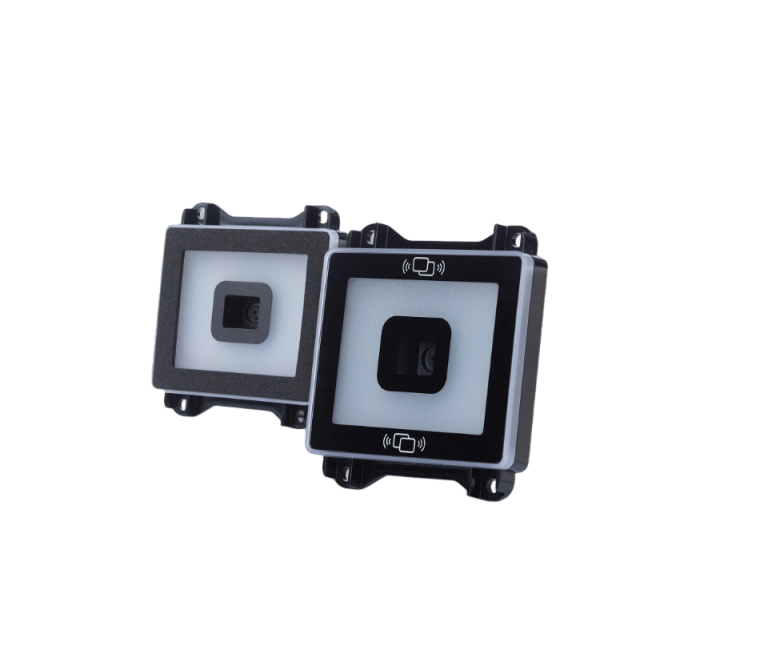

NEWLAND EM20-85 ເຄື່ອງຈັກສະແກນບຣາໂຄ໊ດ (30mm-85mm)
Decode Capability: 1D, 2D
Interface: RS-232, USB, TTL-232
Illumination: White LED
Weight: with foam: 27.4g; with glass: 36.4g
Image Sensor: 640 * 480 CMOS
Illumination: White LED
Symbologies
2D: PDF417, Micro PDF417, QR, Micro QR, Data Matrix, Aztec, Maxicode
1D: Code 128, UCC/EAN-128, AIM 128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-14, Standard 25, Codabar, Industrial 25, Code 39, Code 93, Code 11, Plessey, MSIPlessey, GS1-128 (UCC/EAN-128), GS1-DataBarTM (RSS) (RSS-14, RSS-Limited, RSSExpand), Matrix 2 of 5
Resolution: ≥5mil (1D)
Typical Depth of Field
EAN-13 30mm-85mm (13mil)
PDF417 30mm-50mm (6.7mil)
QR Code 15mm-75mm (15mil)
Data Matrix 25mm-60mm (10mil)
Code 39 25mm-70mm (5mil)
Min. Symbol Contrast: 25%
Scan Angle: Roll: 360°, Pitch: ±60°, Skew: ±60°
Motion Tolerance: 1.5m/s
Field of View: Horizontal 68°, Vertical 51°
NFC Function (Only for NFC version): Available
Reading Distance of NFC Card (Only for NFC version): 0-40mm (typical)
NFC Card Type (Only for NFC version): See NFC Card Type Available for the NLS-EM20-85
