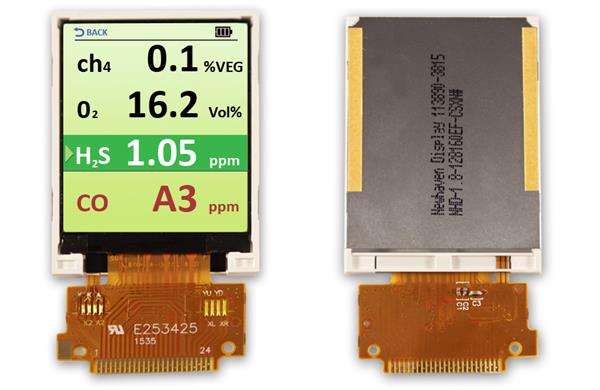

Newhaven Display NHD-1.8-128160EF-CSXN# ໂມດູນ TFT-LCD 1.8" LCD TFT ອ່ານໄດ້ໃນແສງຕາເວັນ

Diagonal: 1.8 in

Features: Built-in Controller

Brightness: 1000 cd/m2

Touch Panel: Without Touch Panel

Unit Weight: 28.594 g

Backlighting: LED, White

Display Mode: Transmissive

Response Time: 20 ms

Viewing Angle: 70 deg x 90 deg

Interface Type: 8-bit Parallel

Mounting Style: Panel Mount

Background Color: White

Viewing Area - W x H: 28.03 mm x 35.04 mm

Module Size - W x H x T: 34.7 mm x 46.75 mm x 2.4 mm

Operating Supply Current: 3 mA

Operating Supply Voltage: 2.8 V

Display Resolution - Pixels: 128 x 160

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
