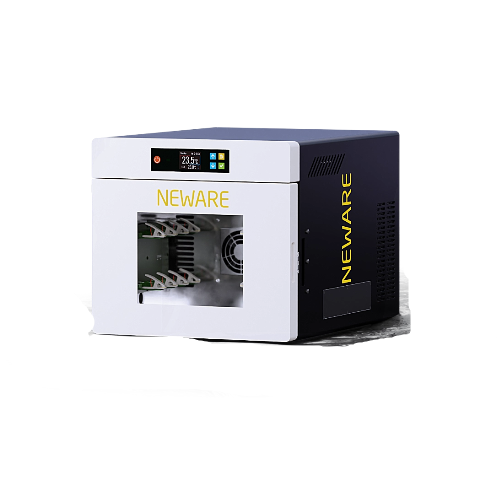

NEWARE MHW-25-S-16CH ລະບົບການທົດສອບ Mini All-in-One (25L, 15～60°C)
Dimensions & Weight
Nominal volume: 25 liters
Inner chamber dimensions: W360 × D300 × H220 mm
Overall dimensions: W440 × D550 × H390 mm
Weight: Approximately 45 kg
Performance
Standard test conditions: Ambient temperature +25 °C, RH ≤ 85%, no load
Test standard: GB/T 5170.2-2017 (Temperature Test Equipment)
Temperature range: 15 °C ~ 60 °C
Temperature fluctuation: ≤ ± 0.5 °C (no load, stable)
Temperature deviation: ± 2.0 °C (no load, stable)
Heating time: 25 °C → 60 °C ≤ 50 minutes
Cooling time: 25 °C → 15 °C ≤ 60 minutes
Structure & Materials
Chamber construction:
• Outer shell – Cold-rolled steel, powder-coated finish
• Inner chamber – SUS304 stainless steel
• Insulation – Polyurethane foam
Temperature conditioning system: DC fan + thermoelectric (Peltier) heating/cooling module
Standard configuration:
• Door – Double-layer tempered glass with frame
• Cell fixture plates – 2 sets
• LED lighting
• Touch-screen control panel
• Thermoelectric module for both cooling and heating
Electrical Control System
Controller: Digital LED display + touch-key interface
Setting method: Via touch keys
Control mode: Automatic PID control; forced-air circulation and Peltier module power adjustment to maintain temperature balance
Communication: Standard Ethernet port
Cell Testing & Integration System
Cell tester: 5 V / 100 mA × 16 channels (Model BT-4016Q-5V100mA-TK-HWX)
Control software (via PC interface) – operation steps:
Launch the software interface
Select the test chamber to be controlled
Set the temperature and operating conditions
Monitor the operating status in real time
