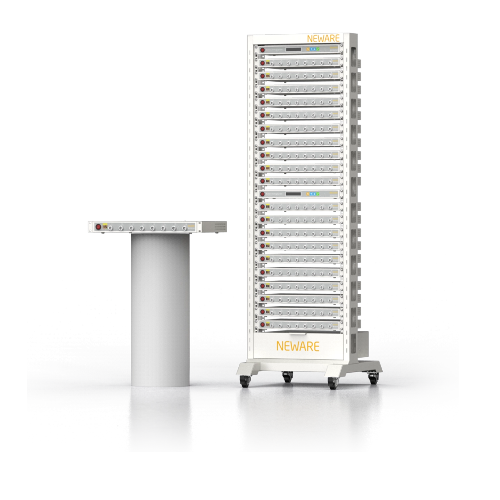

NEWARE CT-4008Q-5V100mA-124 ລະບົບການທົດສອບຫມໍ້ໄຟ (5V, 100mA)
Voltage
+ CV output range: 10mV~5V
+ Min discharge voltage: -5V
+ Accuracy: ± 0.01% of FS
+ Stability: ± 0.02% of FS
Current
+ Output range/channel Range 1: 0. 2 μA-0.1mA; Range 2: 0.1mA-1mA;
Range 3: 1mA-10mA; Range 4: 10mA-100mA
+ Accuracy: ± 0.01% of FS
+ CV cut-off current Range 1：0.1μA; Range 2：1μA; Range 3：1μA; Range 4：0.1mA
+ Stability: ± 0.02% of FS
Power:
+ Output power/channel: 0.5 W
+ Stability: ± 0.1% of FS
Time
Current response time: Max rising time:1.5m
s Working step time: ≤(365*24)h/step Time format-00：00：00.000(h、m、s、ms)
Data Record
Data record conditions
+ Min data record interval:10ms
+ Min voltage change：5mV
+ Min current change：40mA
+ Frequency: 100Hz
Charge
+ Charge modes: CC、CV、CCCV、CP
+ Cut-off condition: Voltage、Current、Time、Capacity、-△V
Discharge
+ Discharge modes: CC、CP、CR
+ Cut-off condition: Voltage、Current、Time、Capacity
Pulse
+ Charge: Constant current, Constant power
+ Discharge: Constant current, Constant power
+ Min pulse width: 500ms
+ Pulse counts: Up to 32
+ Chg and Dischg switch: Supported
+ Cut-off condition: Voltage、Time
DCIR: Supported
CH parallel: Supported, in parallel mode pulse function is disabled
Cycles
+ Max cycles: 65535
+ Max steps: 254
+ Nest: 3
