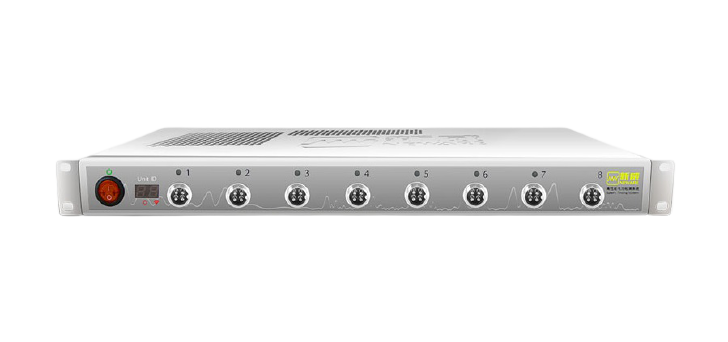

NEWARE CT-4008-5V20mA-164 ລະບົບການທົດສອບຫມໍ້ໄຟລ່ວງຫນ້າ (10uA~20mA, 25mV~5V)
Input: 25W,110V±10% or 220V±10%, Single Phase, 50Hz/60Hz
Output:
Voltage: 25mV~5V, ±2.5mV
Current: Range 1: 2mA ~ 20mA, ±10uA; Range 2: 10uA ~ 2mA , ±1uA
Resolution: AD 16bit, DA 16bit
Data Acquisition:
Frequency: 10Hz Max
Mode:
Min Time Interval: 100ms
Min Voltage Interval: 10mV
Min Current Interval: Range 1: 40uA; Range 2: 4uA
Response Time 1msec, 10%-90% Current Range
Operation Mode:
Charge: Constant Current, Constant Voltage, Constant Resistance
Discharge: Constant Current, Constant Power, Constant Resistance
Simulation: Constant Current, Constant Power
End Conditions: Voltage, Current, Time, Capacity, Energy, -δV
Channel Control: Independent
Step Editor:
Cycles: Max 65535
Steps: Max 255
Loops: Max 3 nested loops
Step Time Format: 00:00:00.000 (mm:hh:ss.ms)
Input Impedance: ≥10GΩ
Noise: <75dB
Environment:
Operating: 15℃~40℃, ≤70% RH, No Condensation
Storage: -10℃~50℃, ≤80% RH, No Condensation
Battery Holders Options: Coin Cell Holders, Alligator Clips, Ring Terminal
Dimensions: 443*330*48 (W*D*H mm)
