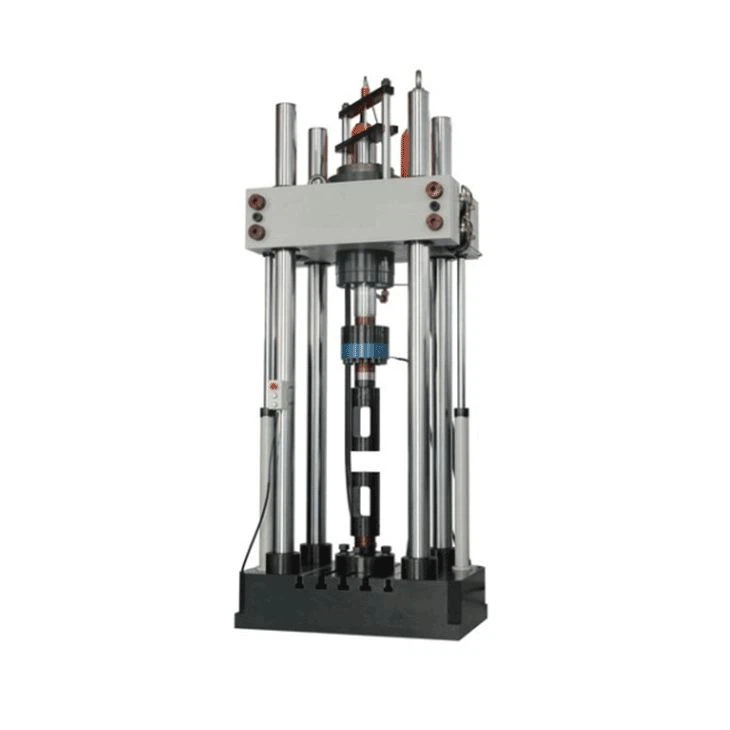

NAKE PLW ເຄື່ອງທົດສອບຄວາມອ່ອນແລງຂອງເສັ້ນເຫລັກ (static 1000kn, dynamic ±1000kn)

Maximum test force: static 1000kn, dynamic ±1000kn;

Test force indicating value accuracy: ≤±1%

Accuracy of displacement indicating value: ≤±1%FS

Frequency range (Hz): 0.1—10 Hz, steplessly adjustable

Control mode: three control modes of load, displacement and deformation, which can be switched between each other

Effective measurement range of test force: 2%-100%FS (no division in the whole process, equivalent to four gears)

Maximum test space: 1000mm (it can be customized according to demand)

Actuator piston stroke: ±100 mm
