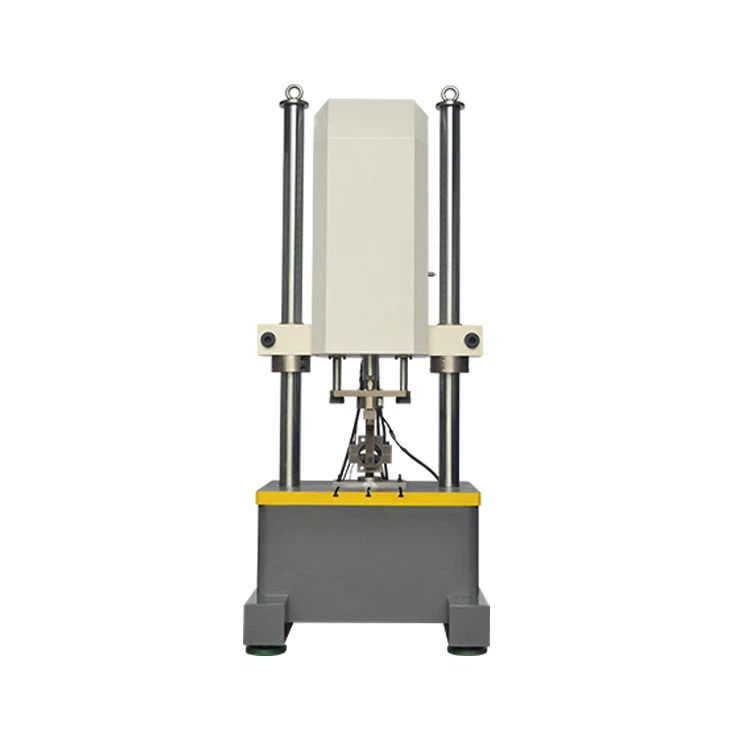

NAKE NKPL-W10KN ເຄື່ອງທົດສອບຄວາມອ່ອນແລະອິເລັກໂທນິກ (±10 kN)

Maximum test force: ±10kN

Test force resolution: 0.01kN

Accurate measurement range of force value: 2%FS-100%FS

Fluctuation of dynamic indicating value of test force: ±1%FS

Static test force accuracy ±0.5%FS

Space in the test bench (length, width and height): 300mm*500mm*500mm (space when tooling aids are not installed)

Displacement resolution: 0.001mm

Amplitude stroke: ±10mm

Frequency: 0.1-20Hz (according to the principle of amplitude-frequency characteristics, under normal circumstances, the frequency will decrease when the deformation is large)

Test waveform: sine wave, triangle wave, square wave

Display: computer screen display

Machine size: length, width and height ( about 700*500*1700mm)

Weight: about 600kg

Power supply: 220V, power 2kW.
