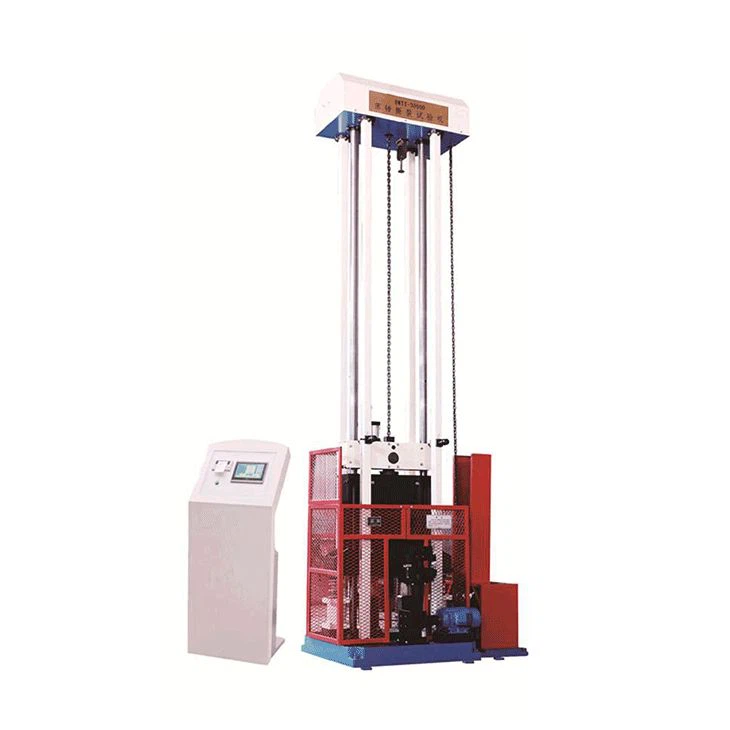

NAKE JLS-30000J ເຄື່ອງທົດສອບການຂາດເສັ້ນນ້ຳໜັກດິຈິຕອນ (30000J)

The maximum impact energy is 30000J

The installation height of the host is ≤5.5m

Impact speed ≥7m/s

The total mass error of the drop weight is ≤1%

Mass error of counterweight weight ≤±0.5%

Rockwell hardness of hammer blade and supporting surface of support jaw >HRC56a、

The radius of curvature of the drop hammer blade is R25.4±2.5mm

the radius of curvature of the support jaws R14.3±1.59mm

Support span 254+1.5mm

The deviation between the center line of the hammer blade and the center of the span of the support is ±1.5mm

The deviation between the sample centering device and the center line of the sample gap is ≤1.5 mm

The deviation between the lifting height of the drop weight and the standard value is ≤1.5 mm

sample size 305×76×(3~40)mm

Dimensions of the testing machine: 1600×2300×5500mm

Motor power 3.5kw

Electronic control system

The electronic control system adopts touch screen operation, and the liquid crystal display can display the lifting height, preset energy, and preset lifting height.
