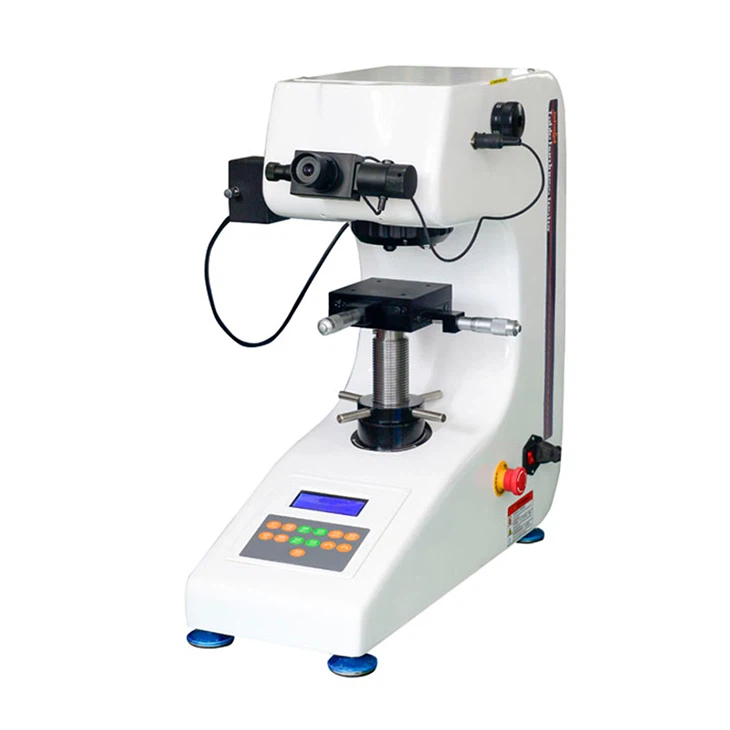

NAKE HVS-1000ZT ອຸປະກອນທົດສອບຄວາມແຂງຂອງວິກເກີດດິຈິຕອນ (5–5000 HV)

Measuring range: 5-5000HV

Test force: 0.098N(10gf)、0.2452N(25gf)、0.4903N(50gf)、0.9807N(100gf) ;  1.961N(200gf)、2.942N(300gf)、4.903N(500gf)、9.807N(1000gf)

Data entry method: automatic

Turret way: automatic

Touch screen size: 8 inches

Printing method: bluetooth printer

Maximum allowable height of the test piece: 120mm

The distance from the center of the indenter to the machine wall: 110mm

XY table size: 100*100mm

XY table stroke: 25*25mm

XY table minimum unit: 0.01mm

Lens magnification: 10X，40X

Magnification: 100X，400X

Minimum step: 0.025μm

Hardness resolution: 0.1HV

Power supply: AC 220V，50Hz

Dimensions: 530*290*490mm

Weight: 45kg
