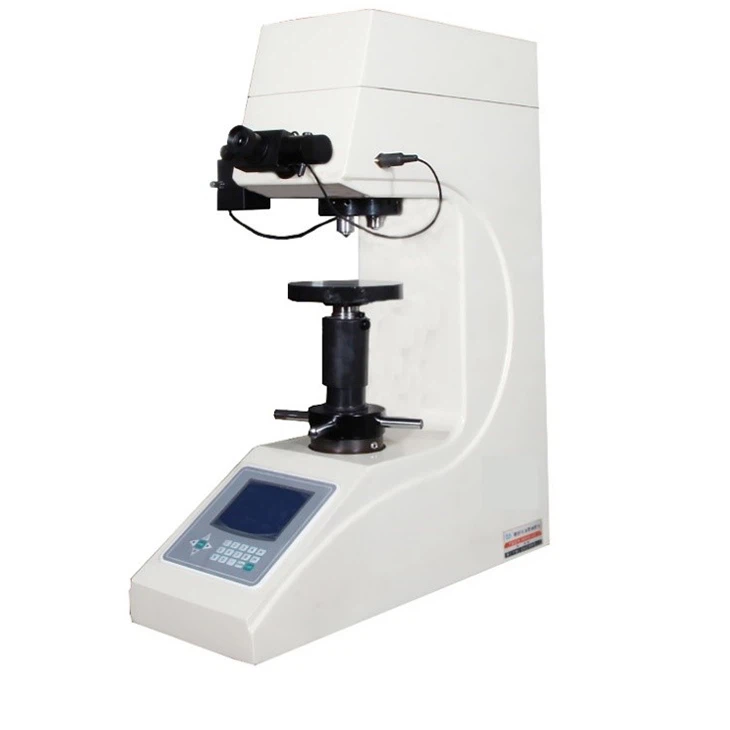

NAKE HV-30 ເຄື່ອງທົດສອບຄວາມແຂງ Vickers ພັກຜ່ອນ (5 HV ~ 3000 HV)

Test force: 1.0Kgf(9.8N); 3.0Kgf(29.4N); 5.0Kgf(49.0N); 10Kgf(98.0N; 20Kgf(196N); 30Kgf(294N)

Hardness test range: 5HV~3000HV

Objective lens: 10×，20×

Total magnification: 100×，200×

Measuring range: 400μm

Indexing value: 0.1μm

Test force application method: Automatic loading and unloading test force

Turret method: Manual turret

Test force holding time: 0～60s (one unit per second, any input)

Maximum height of specimen: 200mm

The distance from the center of the indenter to the outer wall: 130mm

Voltage: AC220V/50Hz

Dimensions: 620*330*640mm

Weight: About 70Kg
