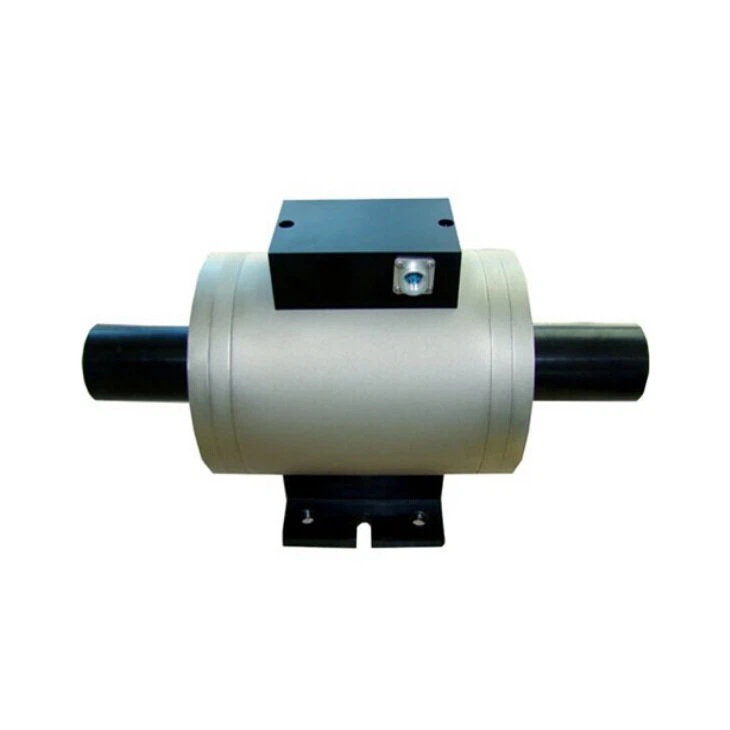

NAKE HCNJ-101 ຕິດຕາມແຮງບິນໄຟນ້ຳ Dynamic Torque (5Nm ~ 500,000Nm)

Measurements: 5Nm, 10Nm, 20Nm, 50Nm, 100Nm, 200Nm, 500Nm, 1000Nm, 2000Nm, 5000Nm, 10,000 Nm, 20,000 Nm, 30,000 Nm, 50,000 Nm, 100,000 Nm, 200,000 Nm, 300,000 Nm, 500,000 Nm (optional)

Power supply: ±15V DC (for frequency signal output), 24V DC (for voltage or current signal output)

Torque signal: 5～15Khz (amplitude 12V, zero point 10kHz), 4～20mA, 1～5V, 0-10V (optional)

Speed range: 0～1000、3000、6000、8000rpm

Speed signal: 60 pulse/rev (no accumulation error, amplitude 12VDC), 4-20mA, 1-5V

Accuracy: ±0.5%

Insulation resistance: ≥200MΩ(100VDC)

ambient temperature: -20 ~ 60 ℃ (can be customized high temperature type -20 ~ 120 ℃)

Relative humidity: 0～90%RH

Overload capacity: 150%

Frequency response: 1ms
