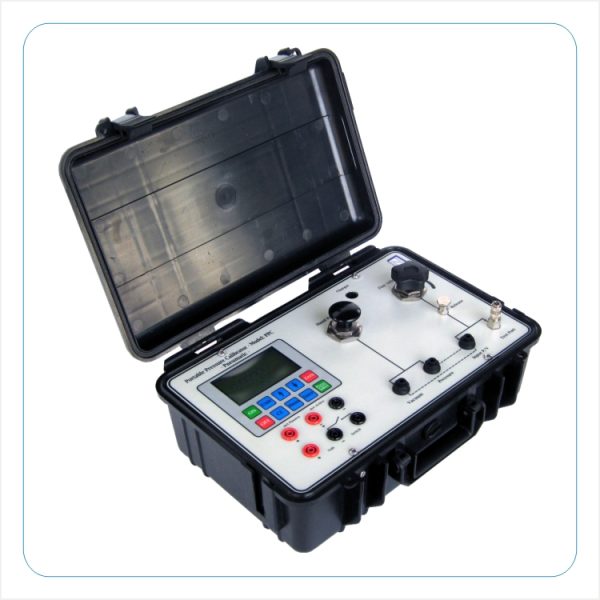

Nagman PPC-P ເຄື່ອງປັບຄວາມດັນໄຟຟ້າແບບພົກພາ (-0.85~20 Bar, ±0.05% F.S.)
Ranges: -0.85 to 2 / 7 / 10 / 20 Bar
Accuracy: ±0.05% F.S.
Temperature: Compensation 0 to 50°C (Automatic)
Resolution: Minimum 5 digits
Display: Large Graphic Display
Engineering Units: Kg/cm2, Bar, mBar, PSI, mH2O, mmH2O, cmH2O, inH2O, ftH2O, mmHg, inHg, Atm, Mpa, Kpa, Pa
mA Input:
+ 50mA (Active Loop) & 25mA (Passive Loop)
+ Load Resistance : 800Ω
Volt Input: 0 to 30V DC
Resolution (mA / V): 0.001
Pressure Switch Test: Maximum 5V DC (approx.)
Over Pressure Alarm: 120% FS (Audio / Visual)
Pressure generation: Integral / Built-in Pump & Fine Adjustment Vernier Assembly
Battery: Rechargeable Battery & Charger
Low Battery Indication: Provided
Instrument Dimension:
+ 330 x 235 x 125 mm (L x B x H) : (2 / 7 / 10 Bar)
+ 330 x 235 x 200 mm (L x B x H) : (20 Bar)
Instrument Weight:
+ 4 Kg. (2 / 7 / 10 Bar)
+ 6 Kg. (20 Bar
-Standard Delivery:
Digital Pressure Calibrator
Set of Adaptors (BSP & NPT)
Test Leads & Seals Kit
Hose with End Fitting
External Battery Charger
Traceable Calibration Certificate
Instruction Manual
-Optionals:
"Calpress” Calibration Software
RS-232 Computer Interface
Calibration Certificate from NABL Accredited – as per ISO/IEC 17025:2005 Laboratory
