-DC Current
Measurement (Range/Resolution/ Accuracy/ I/P impedance):
0 to 50mA/ 0.001/ 0.025% FS/ <140 Ω at 1mA
Simulation (Range/ Resolution/ Accuracy):
0 to 50 mA/ 0.001/ 0.025%FS
- DC Voltage
Measurement (Range/Resolution/ Accuracy/ I/P impedance):
0 to 200mA/ 0.001/ 0.025% FS/ Rin > 10 MΩ
0 to 2000 mV/ 0.01/ 0.025% FS/ Rin > 10 MΩ
0 to 20V/0.0001/ 0.025% FS/ Rin > 10 MΩ
Simulation (Range Resolution/ Accuracy):
0 to 200mA/ 0.001/ 0.025% FS
0 to 2000 mV/ 0.01/ 0.025% FS
0 to 20V/0.0001/ 0.025% FS
- Resistance
Measurement (Range/ Resolution/ Accuracy):
400 Ω/ 0.001Ω/ 0.025% FS
4000 Ω/ 0.0001Ω/ 0.025% FS
Simulation (Range/ Resolution/ Accuracy):
400 Ω/ 0.001Ω/ 0.025% FS
4000 Ω/ 0.0001Ω/ 0.025% FS
-Temperature – Resistive Probes (IEC Std. 60751)
Measurement (Probe/ Range/ Resolution/ Accuracy):
Pt100/ -100°C to 800°C/ 0.01°C/ 0.05% FS
Pt200/ -100°C to 600°C/ 0.01°C/ 0.05% FS
Pt500/ -100°C to 530°C/ 0.01°C/ 0.05% FS
Pt1000/ -100°C to 650°C/ 0.01°C/ 0.05% FS
Simulation (Probe/ Range/ Resolution/ Accuracy):
Pt100/ 0°C to 800°C/ 0.01°C/ 0.05% FS
Pt200/ 0°C to 600°C/ 0.01°C/ 0.05% FS
Pt500/ 0°C to 530°C/ 0.01°C/ 0.05% FS
Pt1000/ 0°C to 650°C/ 0.01°C/ 0.05% FS
-Temperature – Thermocouple (IEC Std. 60584)
Measurement (Type/ Range/ Resolution/ Accuracy):
K/ -100°C to 1260°C/ 0.01°C/ 0.1% FS
J/ -100°C to 1200°C/ 0.01°C/ 0.1% FS
R/ 150°C to 1760°C/ 0.01°C/ 0.1% FS
B/ 920°C to 1820°C/ 0.01°C/ 0.1% FS
N/ 0°C to 1300°C/ 0.01°C/ 0.1% FS
S/ 170°C to 1760°C/ 0.01°C/ 0.1% FS
Measurement (Type/ Range/ Resolution/ Accuracy):
K/ 0°C to 1260°C/ 0.01°C/ 0.1% FS
J/ 0°C to 1200°C/ 0.01°C/ 0.1% FS
R/ 150°C to 1760°C/ 0.01°C/ 0.1% FS
B/ 950°C to 1820°C/ 0.01°C/ 0.1% FS
N/ 0°C to 1300°C/ 0.01°C/ 0.1% FS
S/ 170°C to 1300°C/ 0.01°C/ 0.1% FS
Standard delivery:

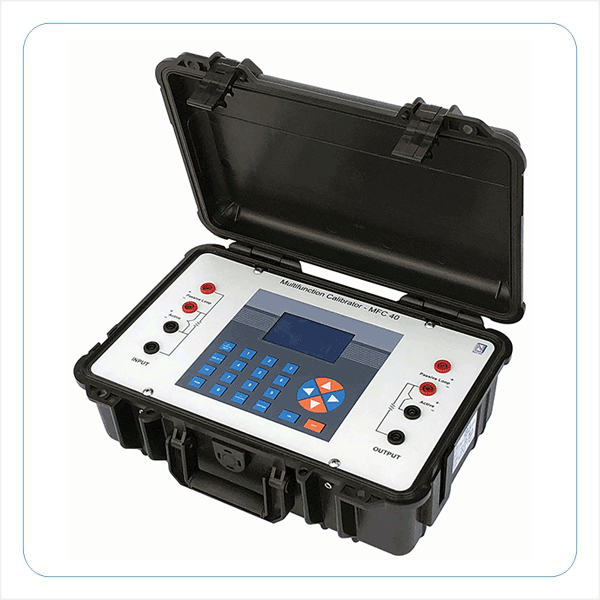

Multifunction Process Calibrator – MFC40
Rechargeable Battery with Power Adaptor
Operation Manual
Test Leads
Traceable Calibration Certificate
Optionals:
Calibration Certificate from NABL Accredited –as per ISO/IEC 17025:2005 Laboratory
