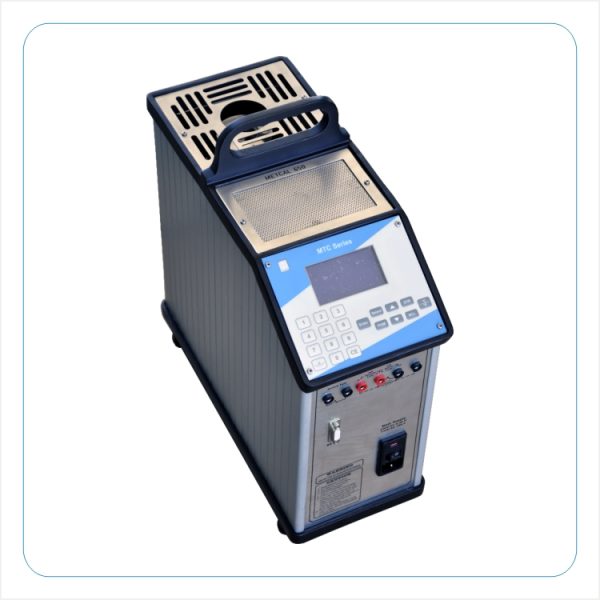

Nagman METCAL 650 Metrological Medium Temperature Dry Block Calibrator (50°C~650°C, 0.01°C)
Range: 50°C to 650°C
Resolution: 0.01°C
Accuracy: ±0.4°C
Stability: ±0.04°C
Stabilisation Time: 15 Minutes
Temperature Readout: °C / °F Switcheable
Axial Uniformity (40 mm): ±0.4°C
Radial Uniformity: ±0.04°C
Well Diameter: 30 mm
Immersion Depth: 150 mm
Heating Time (50 to 650°C): 36 Minutes approx.
Cooling Time (650 to 100°C): 75 Minutes approx.
Switch Test facility: Provided
Interchangeable Thermowells: Multihole to suit 2 x ¼” & 1 x ½” Probes. Other Sizes available as optional
Housing / Mounting: Bench-top
Power Supply / Consumption: 230V AC, 50 Hz & 115V AC, 60 Hz – 1400W – Selectable
Instrument Dimensions (L x D x H): 160 x 365 x 450 mm
Instrument Weight (approx.): 11 Kg.
Measurement Capability:
+ Thermocouples: ISA Types J, K, R, S, N
+ RTD:Pt100 IEC Std.
+ mA:0 to 25 mA
+ mV:0 to 100 / 1000 mV
+ Volt:0 to 10 V
+ Resistance:0 to 500Ω / 3.5 KΩ
-Standard Delivery:
Basic Instrument
Test Leads
Mains Cable
Multihole Insertion Tubes (to suit 2 x ¼“ & 1 x ½“ probes)
Tool for Insertion Tubes
Spare Fuses
RS-232 Computer Interface & “METCAL” Calibration Software
Calibration Certificate from NABL Accredited– as per ISO/IEC 17025:2005 Laboratory
Instruction Manual
Carrying Case
-Optionals:
For additional Thermowells, / InsertionTubes & Multihole
