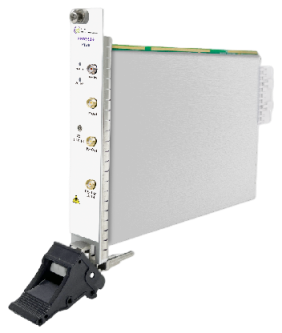

MVIT Technology FED3526 ຕົວແປງລົງ (6 GHz - 26.5)

Name: MVIT Technology FED3526 ຕົວແປງລົງ (6 GHz - 26.5)
Brand: MVIT Technology

ຜູ້ຜະລິດMVIT Technology(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelFED3526

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Down-Converter IF Input Specifications

IF Input Frequency: 50 MHz to 3 GHz

IF Bandwidth: 1500 MHz

Maximum IF Input Power: 15 dBm (đã chỉnh hợp lý – bản gốc bị sai đơn vị)

IF Flatness: ≤ ±3 dB

Down-Converter RF Input Specifications

RF Input Power Range: -70 dBm to +13 dBm

Maximum Input Power: ≤ +13 dBm (sửa logic – bản gốc đang bị sai dòng)

Down-Converter Frequency Conversion Parameters

Input VSWR: < 2.2

Programmable Attenuation: 0 to 30 dB, Step Size: 1 dB

Gain: -40 dB to +40 dB (including 20 dB preamplifier gain)

Spurious Suppression: ≤ 55 dB (Typical)

Noise Figure: ≤ 18 dB (điều chỉnh về dạng chuẩn)

LO Phase Noise: ≤ -100 dBc/Hz @ 10 kHz

Power Consumption: ≤ 25 W

FED3526 Down-Converter accepts RF input from 6 GHz to 26.5 GHz, featuring a PXIe bus interface in a 3U form factor that occupies a single slot. This unit enables down-converter functionality control and debugging via the PXIe bus, providing PXI instrument drivers with C/C++ APIs for parameter configuration, functional control, status monitoring, and reference clock configuration, along with Windows 10 OS drivers. The converter supports external LO signal injection to accommodate SISO and MIMO application scenarios. Its compact modular design maintains high performance while enhancing adaptability in highly integrated complex systems.
