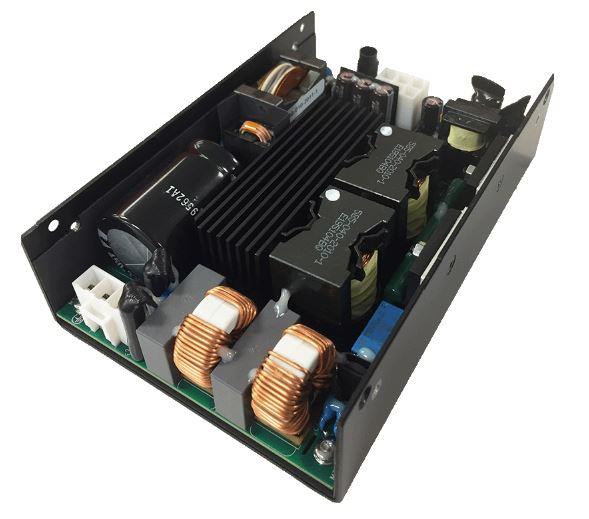

Murata Power Solutions PQU650M-54P ເຊັດຊິ້ງ ສະພາບ 650W 54VDC 100-240VAC Nom

Width: 101.6 mm (4 in)

Height: 40 mm (1.575 in)

Length: 152.4 mm (6 in)

Industry: Medical

Output Power: 650 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 3 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 12.1 A

Output Current-Channel 2: 500 mA

Output Current-Channel 3: 600 mA

Output Voltage-Channel 1: 54 VDC

Output Voltage-Channel 2: 5 VDC

Output Voltage-Channel 3: 12 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
