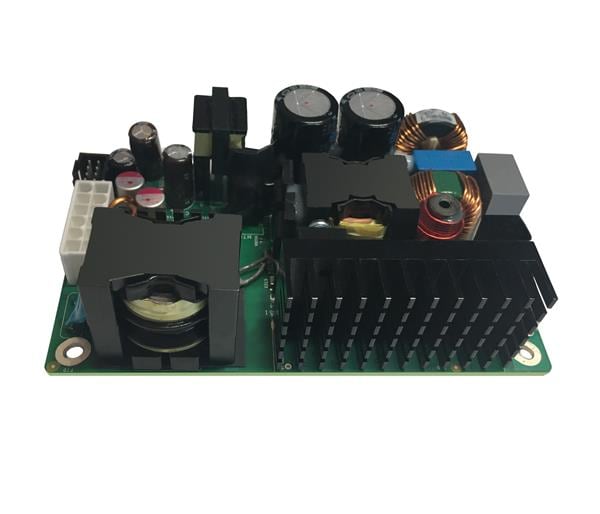

Murata Power Solutions PQC250-36 ອຸປະກອນໃຫ້ພະລັງງານປ່ຽນແປງ

Width: 76.2 mm (3 in)

Height: 35.2 mm (1.386 in)

Length: 127 mm (5 in)

Industry: Medical, Industrial

Efficiency: 94 %

Unit Weight: 427 g

Output Power: 250 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 300 VDC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Mechanical Style: Isolated

Isolation Voltage: 4 kVAC

Number of Outputs: 2 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Open Frame

Input Voltage, Nominal: 100 VAC, 240 VAC

Output Current-Channel 1: 5.6 A

Output Current-Channel 2: 500 mA

Output Voltage-Channel 1: 36 VDC

Output Voltage-Channel 2: 5 VDC

Operating Temperature Range: - 10 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
