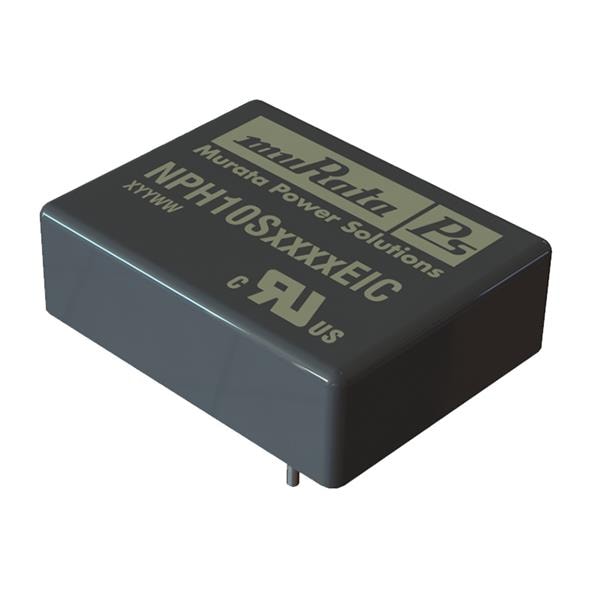

Murata Power Solutions NPH10S2403EIC ອິສເອລເທດ DC/DC TH 10W 24V-3.3V DIP

Width: 25 mm (0.984 in)

Height: 10 mm (0.394 in)

Length: 32 mm (1.26 in)

Industry: Industrial

Application: Industrial

Unit Weight: 22 g

Output Power: 10 W

Input Voltage: 18 V to 36 V

Mounting Style: Through Hole

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 2.94 A

Output Voltage-Channel 1: 3.4 V

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 40 C
