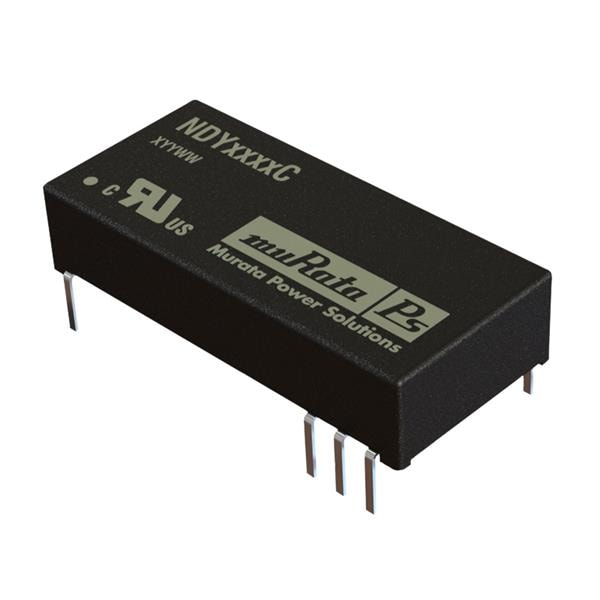

Murata Power Solutions NDY1209C ອິສເອລເທດ DC/DC TH 3W 12V-9V DIP24

Width: 14.66 mm (0.577 in)

Height: 7 mm (0.276 in)

Length: 32.26 mm (1.27 in)

Industry: Medical, Industrial

Application: Industrial

Unit Weight: 6.200 g

Output Power: 3 W

Input Voltage: 9 V to 18 V

Mounting Style: Through Hole

Isolation Voltage: 1 kV

Number of Outputs: 1 Output

Input Voltage - Max: 18 V

Input Voltage - Min: 9 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 333 mA

Output Voltage-Channel 1: 9 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
