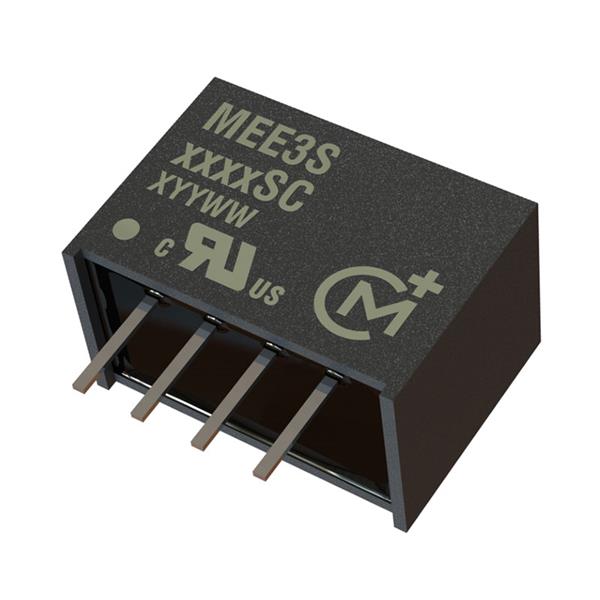

Murata Power Solutions MEE3S1215SC ປະກັນແຍກ

Width: 8.15 mm (0.321 in)

Height: 10.15 mm (0.4 in)

Length: 14.15 mm (0.557 in)

Industry: Medical, Industrial

Application: Industrial

Unit Weight: 2.300 g

Output Power: 3 W

Input Voltage: 10.8 V to 13.2 V

Mounting Style: Through Hole

Isolation Voltage: 1 kV

Number of Outputs: 1 Output

Input Voltage - Max: 13.2 V

Input Voltage - Min: 10.8 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 200 mA

Output Voltage-Channel 1: 15 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
