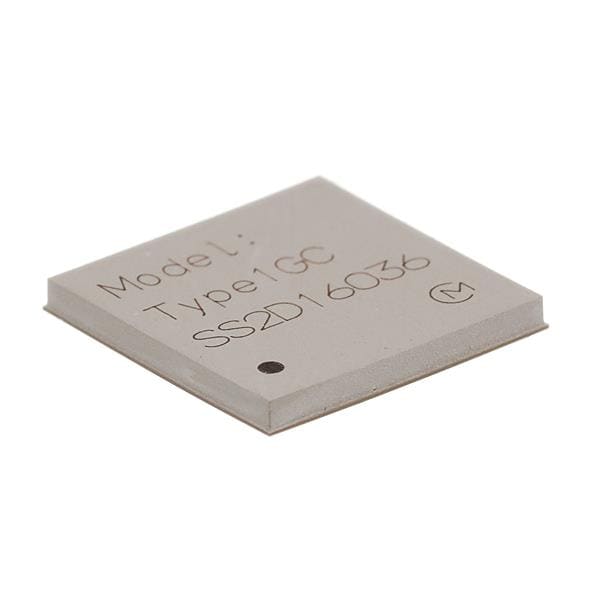

Murata Electronics LBWA1UZ1GC-958 ໂມດູນ WiFi ປະເພດ 1GC ປົກກະໄພຂະໜາດນ້ອຍສຸດ 802.11a/b/g/n/ac

Data Rate: 11 Mb/s, 54 Mb/s, 65 Mb/s

Frequency: 2.4 GHz, 5 GHz

Dimensions: 10 mm x 10 mm x 1.2 mm

Unit Weight: 637.700 mg

Output Power: 12 dBm, 13 dBm, 17 dBm

Qualification: AWS

Interface Type: Ethernet, GPIO, I2C, SPI, UART, USB

Moisture Sensitive: Yes

Protocol Supported: 802.11 a/b/g/n

Modulation Technique: CCK, DSSS, OFDM

Supply Voltage - Max: 4.8 V

Supply Voltage - Min: 3.13 V

Antenna Connector Type: External

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 100 mA

Supply Current Transmitting: 310 mA, 320 mA, 330 mA, 380 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
