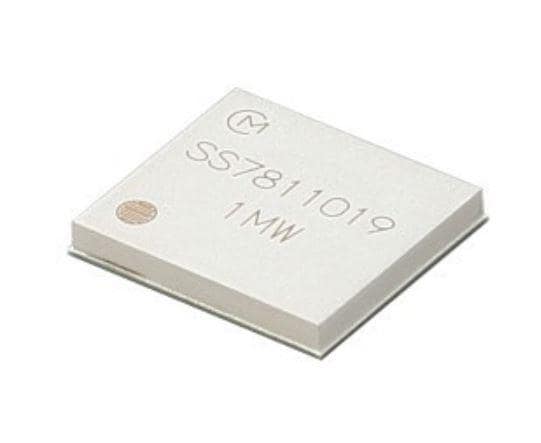

Murata Electronics LBEE5HY1MW-230 ໂມດູນຫຼາຍໂປໂຕຄອນປະເພດ 1MW ປົກປ້ອງຂະໜາດນ້ອຍສອງສະຖານະ Wi-Fi 11a/b/g/n/ac Bluetooth 5.0 Combo

Data Rate: 433 Mb/s

Frequency: 2.4 GHz, 5 GHz

Dimensions: 7.9 mm x 7.3 mm x 1.1 mm

Unit Weight: 2.845 g

Output Power: 17 dBm

Interface Type: I2S, SDIO, UART

Moisture Sensitive: Yes

Modulation Technique: CCK, DSSS, OFDM

Supply Voltage - Max: 3.63 V

Supply Voltage - Min: 1.62 V

Antenna Connector Type: External

Operating Supply Voltage: 3.2 V to 4.2 V

Protocol - WiFi - 802.11: 802.11 a/b/g/n/ac

Supply Current Receiving: 130 mA

Supply Current Transmitting: 420 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.0
