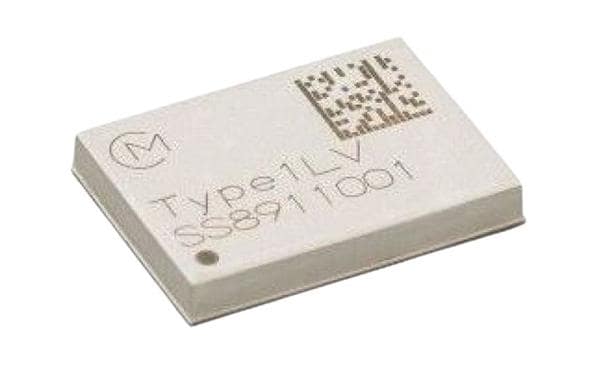

Murata Electronics LBEE59B1LV-278 ໂມດູນຫຼາຍໂປໂຕຄອນປະເພດ 1LV ປົກກະໄຕຂະໜາດນ້ອຍສອງສະຖານະ Wi-Fi 11a/b/g/n/ac Bluetooth 5.0

Data Rate: 78 Mb/s

Frequency: 2.4 GHz, 5 GHz

Dimensions: 10 mm x 7.2 mm x 1.4 mm

Unit Weight: 1.203 g

Output Power: 17 dBm

Interface Type: SDIO, UART

Moisture Sensitive: Yes

Modulation Technique: DSSS/CCK/OFDM

Supply Voltage - Max: 1.98 V

Supply Voltage - Min: 1.62 V

Antenna Connector Type: External

Operating Supply Voltage: 3.2 V to 4.4 V

Protocol - WiFi - 802.11: 802.11 a/b/g/n

Supply Current Receiving: 20 mA

Supply Current Transmitting: 230 mA

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.0
