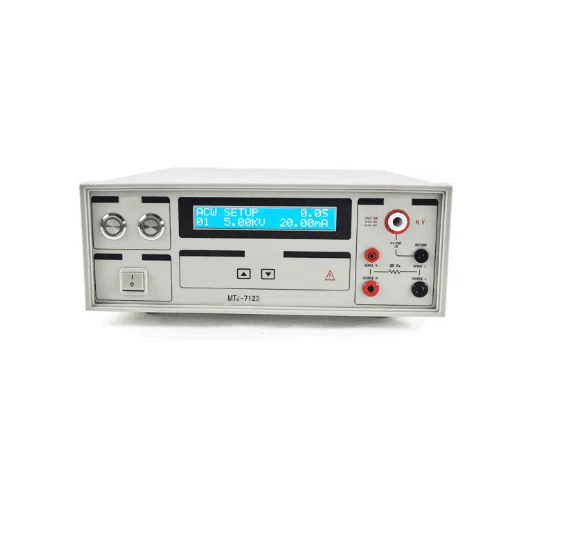

MultiTech MTJ-7123 ອຸປະກອນທົດສອບ Hipot (5kVAC, 6kVADC)
Withstand Voltage Test
AC
utput Voltage Range: 0.1kV-5kV
Voltage 10V
Voltage Accuracy : 3%
Voltage Frequency: 50Hz/60Hz
Maximum Output Currentı :20mA
Current Setting: 0.01mA-20mA
Current Resolution: 0.01mA
Current Accuracy: 3%
DC
Output Voltage Range: 0.1kV-6kV
Voltage Resolution: 10V
Current Setting: 0.01mA-10mA
Current Resolution: 0.01mA
Current Accuracy :3%
Insulation Resistance Test
IR
Voltage Measurement Range: 500V-1000V DC
Voltage Resolution :100V
Voltage Accuracy: ±(3% okuma+3V)
Resistance Measuring Range: 1MΩ-2000MΩ
Resistance Measurement Accuracy: 10%
Upper Limit of Resistance Setting: 1MΩ-2000MΩ
Grounding Resistance Test (photovoltaic industry can be changed into DC grounding resistance test)
GR
Voltage Frequency: 500V-1000V DC
Output Current Range: 100V
Current Accuracy ±(3% okuma+3V)
Current Measuring Range: 1MΩ-2000MΩ
Resistance Display Resolution :1MΩ
Resistance Setting Range: 1MΩ-300MΩ (3-10A); 1MΩ-150MΩ (10-30A)
