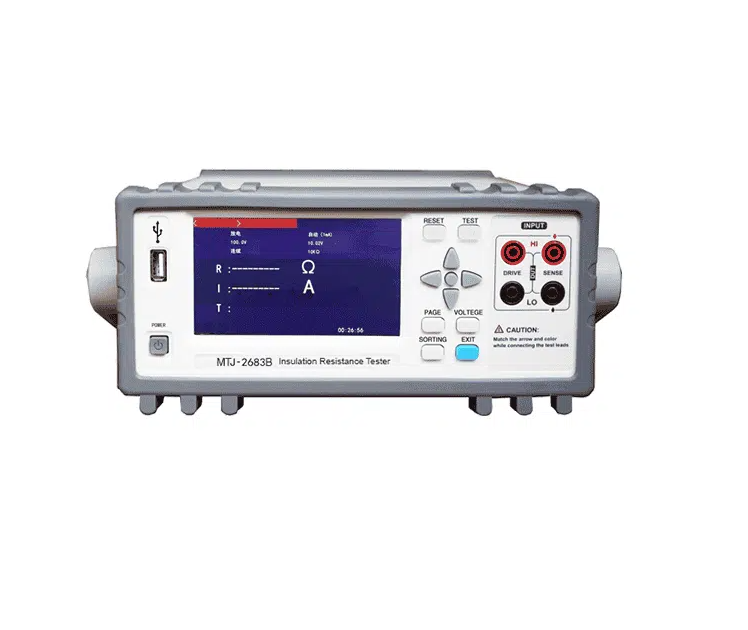

MultiTech MTJ-2683B ອຸປະກອນທົດສອບຄວາມຕ້ອນຂອງການຕິດຕໍ່ສະຫນາມ (2KΩ~9999MΩ)

Resistance Measuring Range: 2kΩ~9999MΩ

Range Method: Automatic / Manual

Measuring Method: Constant/Remote Control Single

Test Speed : Fast Speed 50ms/time; Slow Speed 500ms/time

Measuring Voltage: 25V~1000V

Voltage Display Accuracy: ±1%

Test Voltage: Resistance Range/ Display Range(Ω)/ Resolution

25V≤V<100V: 2MΩ /  0.000~4.000M / 0.001

        20MΩ / 1.90M~40.00M / 0.01M

        200MΩ / 19.0M~400.0M / 0.1M

10V≤V<500V: 2MΩ/ 0.000~4.000M / 0.001

       20MΩ / 1.90M~40.00M / 0.01M

       200MΩ / 19.0M~400.0M / 0.1M

       2000MΩ / 190M~4000M / 1M

500V≤V≤1000V: 2MΩ / 0.000~4.000M / 0.001

               20MΩ / 1.90M~40.00M / 0.01M

               200MΩ / 19.0M~400.0M / 0.1M

              2000MΩ / 190M~9990M / 1M
