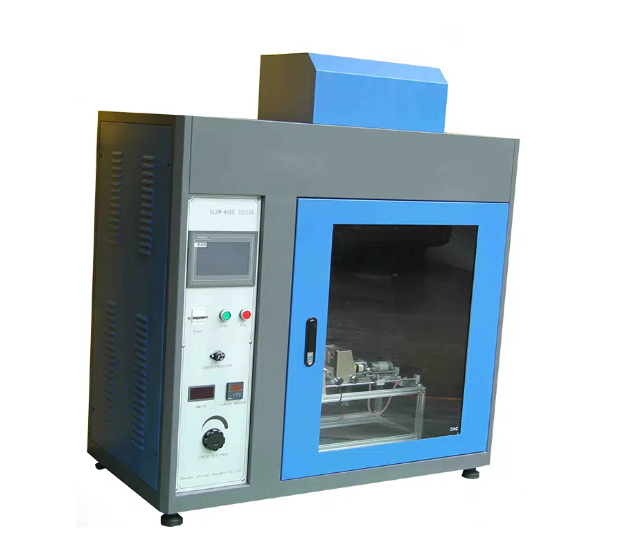

MultiTech MTC-GWE100 ເຄື່ອງທົດສອບລົດສາຍແສງ

Glow Wire: Φ4mm±0.04mm, Ni/Cr

Temperature Range of Glow-Wire: 100~1050 (digital display)

Temperature Fluctuation: <3℃

Thermocouple: Φ0.5 or 1.0mm (conrmed before purchasing, insulation type high temperature resistance armored thermocouple)

Current Adjustment Range: 0~150A

Force Applied on Sample by Glow-Wire: 1.0N ±0.2N

Depth of Glow Wire Penetrates in the Sample: 7mm±0.5mm (controlled by mini electromagnet, ironing depth can be fine tuned)

Size of Sample Fixture: 80*80mm

Driving Mode of Specimen Trolley: DC motor drives ball screw, specimen trolley operating smoothly at a constant speed

Specimen Moving Speed: 10mm/s~25mm/s

Glowing Time: 0~99.99s (digital display, can be preset)

Time of Starting Burning: 0~99.99s (digital display, can be preset)

Flame Extinction Time: 0~99.99s(digital display, can be preset)

Ignition Ground Plate: 10mm-thickness pine wood coated with standard silk paper (12g/

Distance Between Action Point of Glow Wire and Pine Plate: 200mm±5mm

Internal Volume of Chamber : 0.5m3 (0.75m3 or 1m3 optional)

Dark Color Illuminance of Background Material in the Test Chamber : <20 Lx

Room Materials : Spray Iron Sheet

Ventilation: Φ100mm
