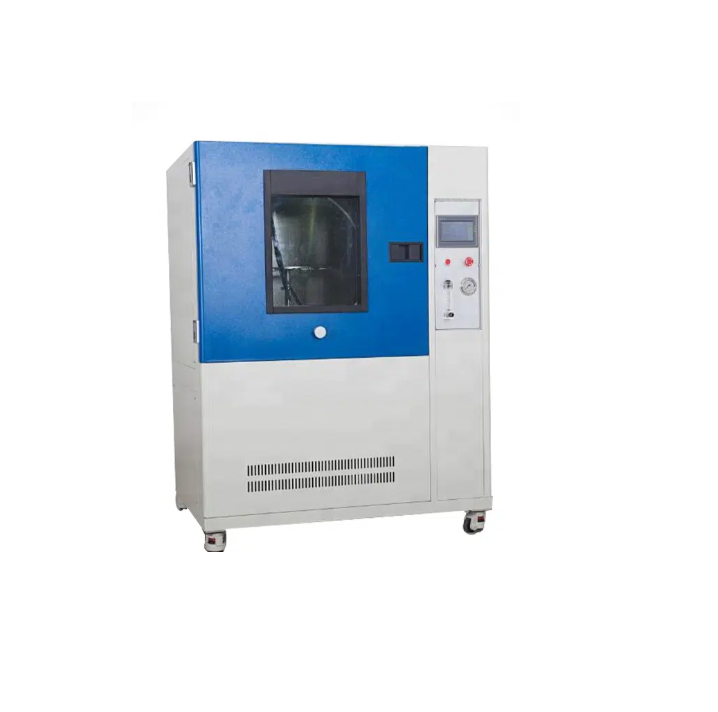

MultiTech MTBR-500K ຫ້ອງທົດສອບຝົນ IPX3 ແລະ IPX4

Workroom Dimensions (cm): 80*80*80

Exterior Dimensions (cm): 102*136*156

Power: 2.0(KW)

Water Spray Ring Radius: 375 mm

Water Pipe Diameter: φ16mm

Spraying Hole Diameter: φ0.4mm

Aperture Spacing: 50 mm

Swing Range : ±45°, ±60°, ±90°, ±180°

Test Bench Rotation Speed: 1r/min, or steeples speed regulating (optional)

Swing Speed: adjustable

Raining Pressure: 80KPa, adjustable. (Meet 5±2 mm/min of rain density, according to standard calcuRotate Speed of Holder 1  3r/min, adjustable. (changeable following special requirement). Can make an

Area of Holder: Ø600mm
