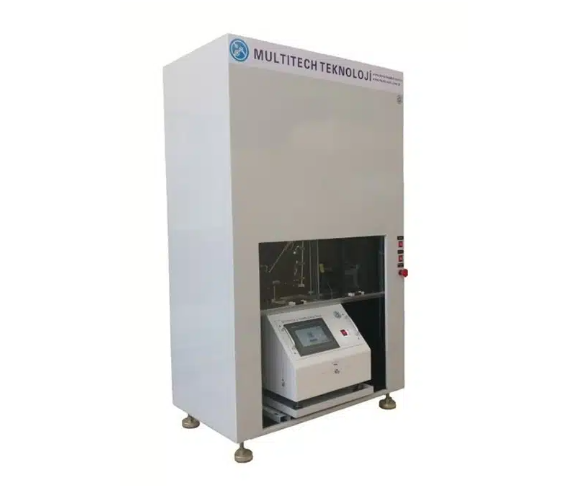

MultiTech MT-LT1 ຕົວທົດສອບການຕິດຕາມ

Working Voltage: 220V/50Hz, 1kVA

Testing Voltage:  0~600V adjustable, precision 1.5%

Timing Device:  9999X0.1S

Electrode: Platinum electrode and brass electrode each for a pair

Electrode Dimension: (5±0.1)×(2±0.1)×(≥12)mm , 30°slant

Electrode Included Angle and Distance: 60°±5°,distance is (4±0.1 mm)

Electrode Pressure: 1.00N ± 0.05N(digital display is optional)

The Interval of Dropping Liquid: 30±5S, adjustable

Dropping Liquid: 35±5mm

Dropping Liquid Delay: 0.2S(solenoid valve time) opening

Dropping Liquid Size :45~50 drip/cm3
