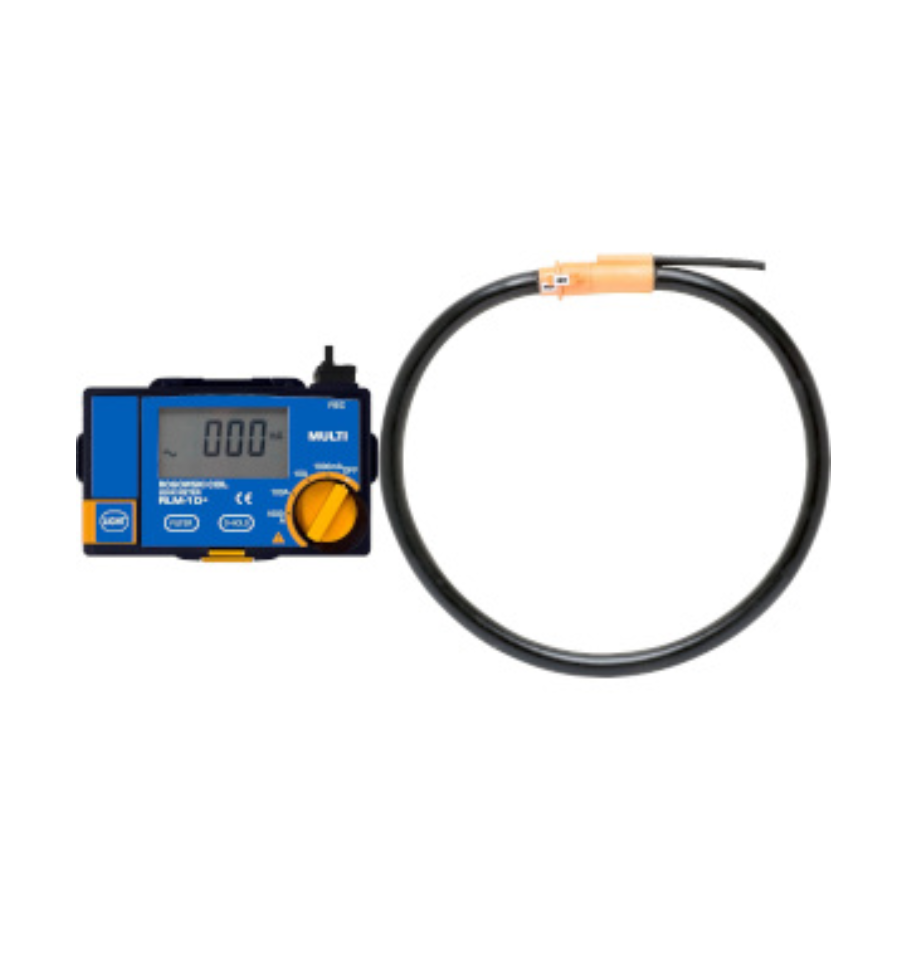

MULTI RLM-10+ 漏れ電流クランプテスター (AC/DC)

SPECIFICATIONS - CURRENT DETECTION PART

Sensoring Method: Flexible Split-Core Type

Inside Diameter: φ210mm (total length approx. 650mm)

Influence of Residual Current: Less than 0.25A (at AC 50A, the point where influence is most receivable)

Withstanding Voltage: AC 2200V/1 minute

Length of Lead Wire: Approx. 2m between CT and Measuring Part

SPECIFICATIONS - MEASURING PART

Measuring Function: AC Line Current, AC Leakage Current

Measuring Method: Dual Integration Mode

Measuring RangeAC 1000mA/10A/100A/1000A (50/60 Hz)

Range Selection: 4 Range Manual by Rotary Switch

Sampling Rate: 2 Times/sec.

Display: LCD max. 9999 reading with annunciators

Over Range Indication: "OL" mark on LCD

Data Hold Indication: "DH" mark on LCD

Low Battery Indication: "B" mark on LCD

Data Hold Function: by "DH" Switch

Filter Function: by Filter Switch to cut hi-frequency (Low Pass Filter for cut off 150 Hz)

Backlight Function: By pressing this switch, back light appears on LCD display and will get off by pressing this switch once again.

Signal Output: DC 100mV full scale to each range (Output impedance : less than 10KΩ)

Auto Power Off: Approx. 10 minutes after power on (this function is cancelled in case of using recorder cable for signal output)

SPECIFICATIONS - GENERAL SPECIFICATION

Circuit Voltage: Less than AC 600V

Operating Temperature: 0～40℃, < 80%RH without condensation

Storage Temperature: -10～60℃, < 70%RH without condensation

Withstanding Voltage: AC 2200V/1 minute

Power Supply: 1.5V (“AA” size, UM-3) x 6

Dimension (Measuring Part): 159(W)×105(H)×53(D) mm

Standard accessories: Battery (UM-3 x 6), Instruction Manual , Carrying Case

SPECIFICATIONS - ACCURACY

Accuracy:

23℃±5℃, less than 80%RH

±3%rdg±5dgt (1000mA)

±2.5%rdg±5dgt (10A/100A/1000A)

Signal Output ±2% F.S.

Resolution

0.1mA (1000mA)

0.001A (10A)

0.01A (100A)

0.1A (1000A)
