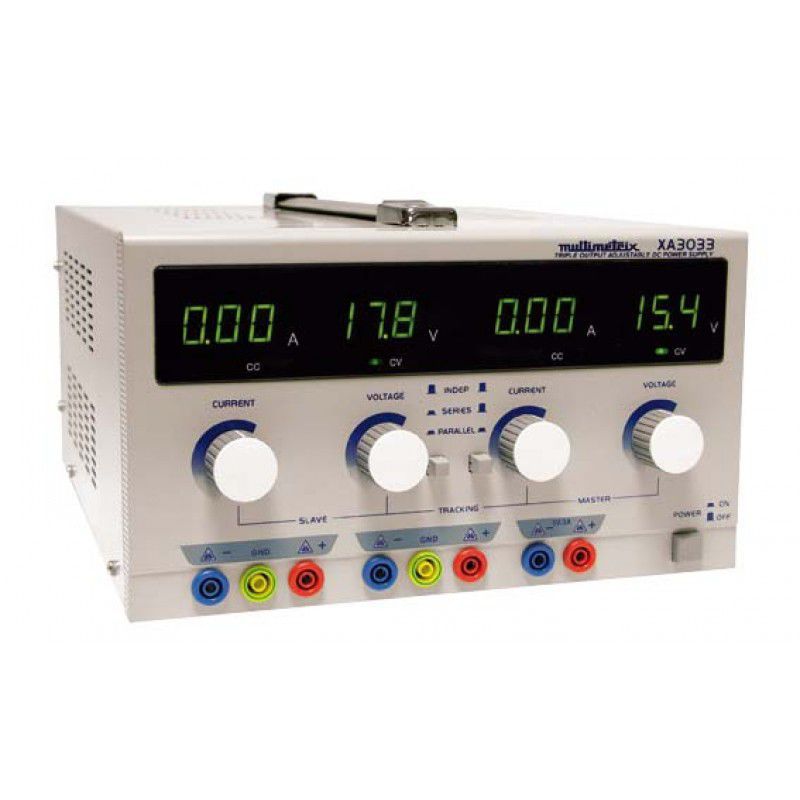

Multimetrix XA3033 Triple Output DC Power Supply (2x30V/5A, 1x5V/5A)
Outputs
Outputs: Two Adjustable (2 x 0 - 30VDC, 0 - 5ADC). One Fixed (5VDC/5ADC)
Voltage Output
Output 1 & 2: 0 to 30VDC
Output 3: 0 to 5VDC
Current Output
Output 1 & 2: 0 to 5ADC
Output 3: 0 to 5ADC
Ripple CV: < 1.0mVrms
Line Regulation: CV: 1x10-4 + 3mV; CC: 2x10-3 + 3mA
Load Regulation
CV: 1x10-4 + 2mV, CC: 2x10-3 + 3mA (@ I ≤ 3A)
CV: 1x10-4 + 5mV, CC: 2x10-3 + 5mA (@ I > 3A)
Display:
Six 3-Digit Red LED Displays
Output 1: V & A displayed simultaneously
Output 2: V & A displayed simultaneously
Display Accuracy: Volts: 0.2% ± 2cts, Amperes: 1% ± 2cts
Output Adjustments Outputs 1 & 2: Adjustable knobs
Dimensions / Weight: 10.25 x 6.30 x 14.20” (260 x 160 x 360mm) / 25 lbs (11.5kg)
Power Supply: 115V/230V ± 10%, 50/60Hz (Selectable on Back Panel)
