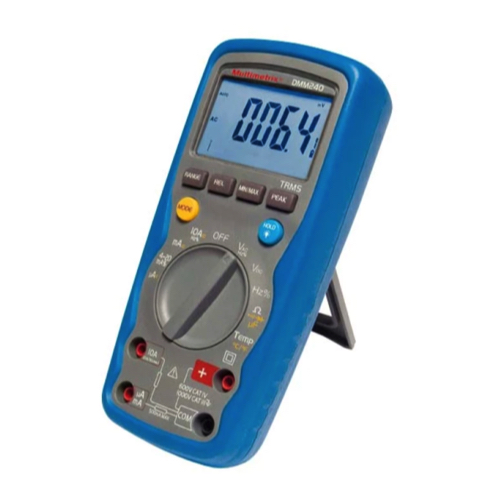

Multimetrix DMM 240 ດິຈິຕອລ-ມັລຕິມີເຕີ (TRMS AC/DC; 10A; 1000V; 40 MΩ)
Display: 40,000 counts - Backlit with bargraph
Measurement type: TRMS AC/DC
Bandwidth: 50 Hz to 1 kHz
Ranges: 400 µA / 4000 µA / 40 mA / 400 mA / 10 A ( 20 A max)
Basic accuracy: 1.0 % + 3 cts
Best resolution: 0.01 µA
4-20 mA: - 25 to 125 %
I AC
Ranges: 400 µA / 4000 µA / 40 mA / 400 mA / 10 A (20 A max.)
Basic accuracy: 1.5 % + 3 cts
Best resolution: 0.1 µA
V DC
Ranges: 400 mV / 4 V / 40 V / 400 V / 1000 V
Basic accuracy: 0.06 % + 2 cts
Best resolution: 0.01 mV
V AC
Ranges: 400 mV / 4 V / 40 V / 400 V / 1000 V
Basic accuracy: 1.0 % + 3 cts
Best resolution: 0.1 mV
Resistance
Ranges: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Basic accuracy: 0.3 % + 4 cts
Best resolution: 0.01 Ω
Audible continuity: Yes / 0.1 Ω
Diode test: Yes
Capacitance: 0.01 nF to 40 mF
Temperature (K thermocouple): – 50 °C to +1000 °C
Frequency
Electrical: 40.00 to 400.00 Hz
Electronic: 0.001 Hz to 100.00 MHz
Duty cycle: 0.1 to 99.90 %
Range selection: Autorange / Manual
Other features: Automatic shutdown (deactivatable), DATA HOLD, Relative mode – MIN, MAX, PEAK (1 ms)
Ingress protection: IP 67
Safety: 600 V Cat. IV / 1000 V Cat. III selon IEC 61010-1, IEC 61010-2-033
Dimensions / Weight: 187 x 81 x 50 mm / 342 g approx.
Accessories supplied: 9V battery, 1 set of red/black test-probe leads + adapter for K thermocouple + type K temperature probe
