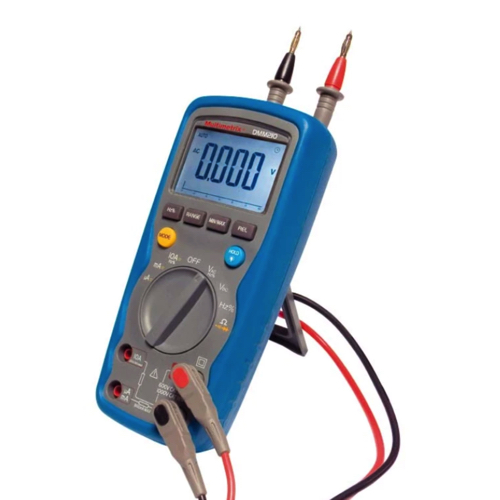

Multimetrix DMM 210 ດິຈິຕອລ-ມັລຕິມີເຕີ (AVG; 10A; 1000V; 60 MΩ)
Display: 6,000 counts - Backlit with bargraph
Measurement type: AVG
Bandwidth: 40 Hz to 1 kHz
Ranges: 600 µA / 6000 µA / 60 mA / 600 mA / 6 A / 10 A
Basic accuracy: 1.0 % + 3 cts
Best resolution: 0.1 µA
4-20 mA: -
I AC
Ranges: 600 µA / 6000 µA / 60 mA / 600 mA / 6 A / 10 A (20 A max.)
Basic accuracy: 1.5 % + 3 cts
Best resolution: 0.1 µA
V DC
Ranges: 600 mV / 6 V / 60 V / 600 V / 1000 V
Basic accuracy: 0.09 % + 2 cts
Best resolution: 0.1 mV
V AC
Ranges: 6 V / 60 V / 600 V / 1000 V
Basic accuracy: 1.0 % + 3 cts
Best resolution: 1 mV
Resistance
Ranges: 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
Basic accuracy: 0.3 % + 4 cts
Best resolution: 0.1 Ω
Audible continuity: Yes / 0.1 Ω
Diode test: Yes
Capacitance: -
Temperature (K thermocouple): -
Frequency
Electrical :10.00 to 400.00 Hz
Electronic: 0.001 Hz to 10.00 MHz
Duty cycle: 0.1 to 99.9 %
Range selection: Autorange / Manual
Other features: Automatic shutdown (deactivatable), DATA HOLD, Relative mode – MIN, MAX
Ingress protection: IP 67
Safety: 600 V Cat. IV / 1000 V Cat. III selon IEC 61010-1, IEC 61010-2-033
Dimensions / Weight: 187 x 81 x 50 mm / 342 g approx.
Accessories supplied: 9V battery, 1 set of red/black test-probe leads
