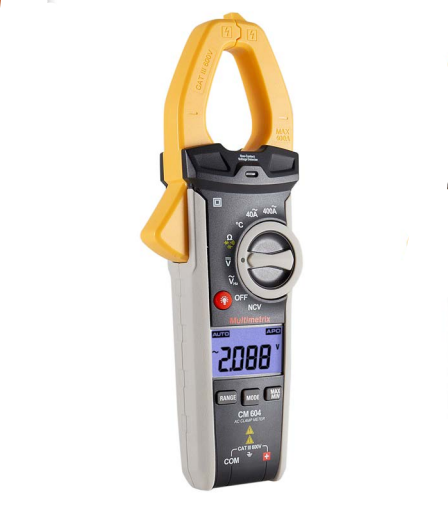

Multimetrix CM 604 Clamp Multimeter (AC 400A)
MEASURING SPECIFICATIONS
AC Voltage: 4.000 V/ 40.00 V / 400.0 V/ 600 V
DC Voltage: 400.0 mV/ 4.000 V/ 40.00 V / 400.0 V/ 600 V
AC current: 40.00 A / 400.0 A
Resistance: 400.0 Ω/ 4.000 kΩ /40.00 kΩ/400.0 kΩ/ 4.000 MΩ /40.00 MΩ
Capacitance: 4.000 nF/ 40.00 nF/ 400.0 nF/ 4.000 µF/ 40.00 µF/ 400.0 µF/ 4.000 mF
Frequency: 4.000 Hz/ 40.00 Hz/ 400.0 Hz/ 4.000 kHz/ 10.00 kHz
Temperature: -18 to 1000°C
GENERAL SPECIFICATIONS
Diode: Test current approximately 1 mA , open circuit voltage of 2 V typical
Continuity test: Audible signal if the resistance is <50 Ω
Display: 4000 count LCD
Measurement rate: 3 readings per second
Input Impedance: >10 MΩ AC and DC Voltage
AC Voltage Bandwidth: 50 Hz to 1 kHz
AC Current Bandwidth: 50 to 60 Hz
Operating Environment: 5 to 40°C (41 to 104°F)
Storage Environment: -10 to 50°C (14 to 122°F)
Operating Humidity: Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F)
Storage Humidity: <80%
Operating altitude: 2000 meters (7000 ft) maximum
Dimensions/ Mass: 154x74x43mm / Approx. 210g (without batteries)
Clamping capacity: Approx. 30 mm in diameter
Safety: For indoor use
Class 2, double insulation
Complies with IEC/EN 61010-2-033 or BS EN 61010-2-033, IEC/EN 61010-032 or BS EN 61010-032 and IEC/EN 61010-031 or BS EN 61010-031 for measurement category III600V, pollution degree 2.
Electromagnetic compatibility EMC: Complies with standard IEC/EN 61326-1 or BS EN 61326-1
Accessories supplied
1 set of cables with Ø2 mm bi-mode test probes, CAT II / CAT III-IV
• 1 wire-K thermocouple
• 1 adapter: K Tc/ Ø4 male safety banana connectors
• 1 bag
• 1 screen-printed cardboard box without hook
• 3 x 1.5V batteries
