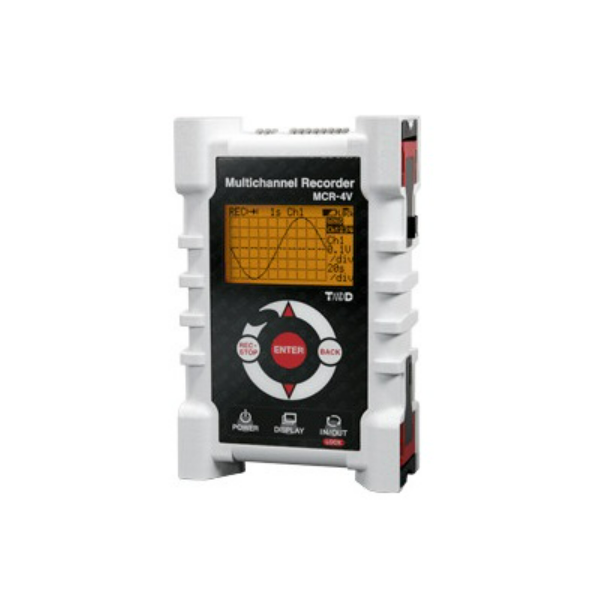

MULTI MCR-4V Multichannel Voltage Data Logger (±300mV, ±1.5V, ±6V, ±24V)

Measurement Channels: Voltage 4ch

Measurement Range: ±300mV, ±1.5V, ±6V, ±24V

Measurement Resolution:

50-60Hz Filter ON : 0.01mV

50-60Hz Filter OFF : 0.1mV

Accuracy:

±300mV Range : ±(0.3%+0.06mV)

±1.5V Range : ±(0.3%+0.3mV)

±6V Range : ±(0.3%+0.6mV)

±24V Range : ±(0.3%+2.4mV)

Logging Capacity: MAX 480,000 data

Recording Interval: 2msec to 60min (23 selections)

Communication Interface: USB

Power:

AA Alkaline Battery ×2

AC Adaptor

USB Power

Dimensions: H120×W75×D32mm

Weight: Approx. 140g

Accessories:

AA Alkaline Battery

USB Communication Cable

Software

Card Slot Cover

User's Manual Set
