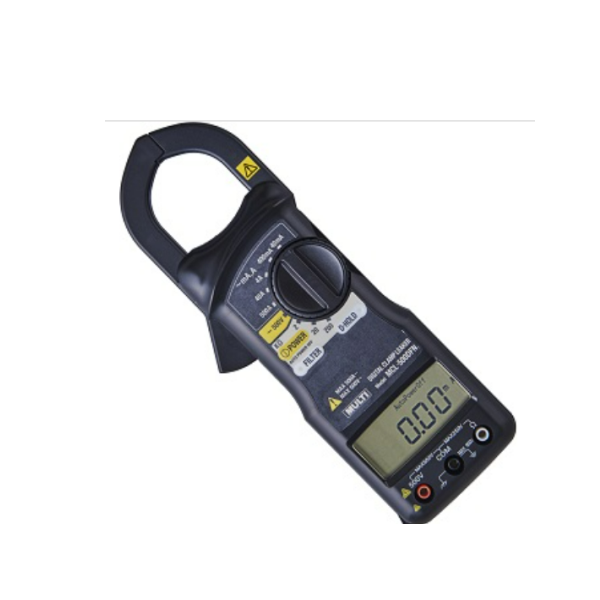

MULTI MCL-500DFN AC Current / Leakage Digital Clamp-on Tester (40mA/400mA/4A/40A/500A)
Measuring function AC current, AC voltage, Resistance
Jaw opening capability: 40mmφ
Measuring ranges:
AC 40mA/400mA/4A/40A/500A
AC 1.0～500V
Resistance: 2kΩ/20kΩ/200kΩ
Sampling rate: 2 times/sec.
Circuit voltage: less than AC/DC 600V
Operating temperature: 0～40℃, < 80%RH (without condensation)
Storage temperature: -10～60℃, < 70%RH (without condensation)
Auto power off: Approx. 10 minutes after power on
Power supply: Battery “AAA” size (1.5V) × 3
Dimension: W70×H223×D34mm
Weight: Approx. 440g
Accessories: Carrying Case, Test Lead, Batteries, Instruction Manual
Accuracy: 23℃±5℃, less than 85%RH
~A (50/60Hz)
Range: 40mA / 400mA / 4A / 40A / 500A
Accuracy: ±1%rdg±10dgt / ±1%rdg±10dgt / ±1%rdg±10dgt/ ±1%rdg±10dgt / ±1%rdg±3%F.S
~V (50/60Hz)
Range: 500V
Accuracy: ±1%rdg±10dgt
Ω(OHM)
Range: 2kΩ / 20kΩ / 200kΩ
Accuracy: ±1%rdg±10dgt / ±1%rdg±10dgt / ±1%rdg±10dgt
