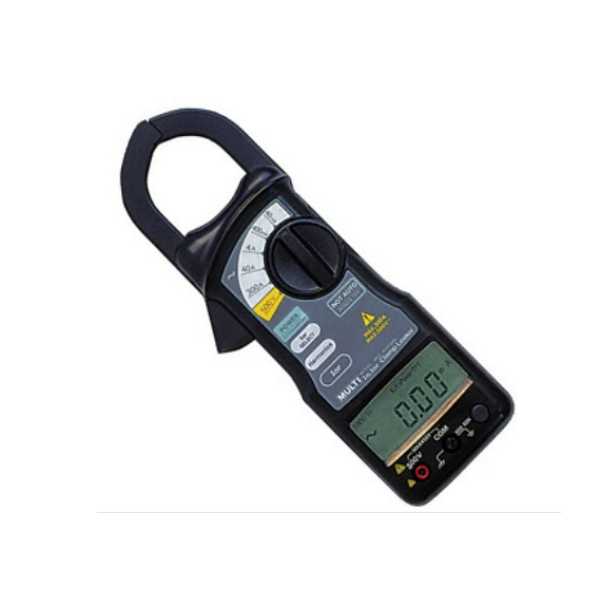

MULTI MCL-400IR+ Digital Ior Leakage Current Clamp Tester (0mA, 400mA, 4A, 40A, 300A)
Display: 3.5 digit LCD, max. reading of 4000
Measuring ranges:
AC 0-40mA, 400mA, 4A, 40A, 300A,
AC 0～500V
Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)
Range/Resolution/Accuracy:
AC Current/40mA/0.01mA/±1.0%rdg±8dgt
AC Current/400mA/0.1mA/±1.0%rdg±8dgt
AC Current/4A/0.001A/±1.0%rdg±8dgt
AC Current/40A/0.01A/±1.0%rdg±8dgt
AC Current/300A/0.1A/±1.0%rdg±1%FS
AC Voltage/500V/0.1V/±1.0%rdg±8dgt
Input Frequency: 45-65Hz
Inside diameter of CT: φ40mm
Withstanding voltage: AC 2200V/1 minute
Limitation of circuit voltage: Less than AC 500V
Sampling rate: 2 times/sec
Operating temperature: 0～40℃, < 80%RH (without condensation)
Storage temperature: -10～60℃, < 70%RH (without condensation)
Power supply: 1.5V ("AAA" sixe, um-4)x3
Dimension: 70(W)×223(H)×34(D)mm
Weight: Approx. 440g
