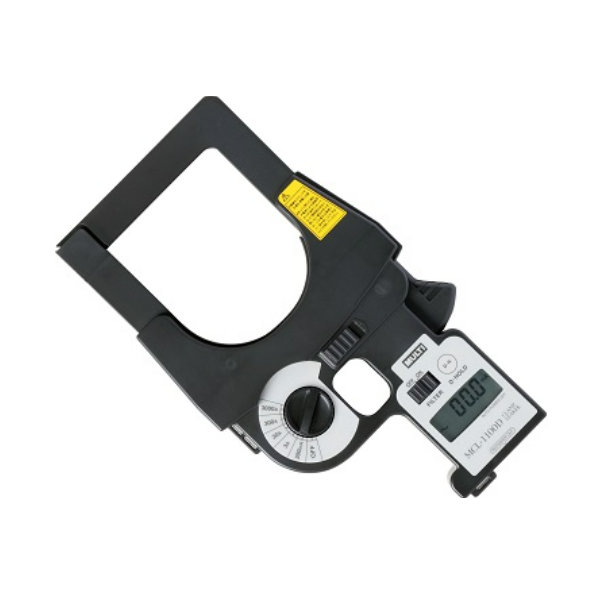

MULTI MCL-1100D ເຄື່ອງທົດສອບ Clamp ດິຈິຕອນ (300mA/3A/30A/300A/3000A, 108mm)
Range: AC300mA/3A/30A/300A/3000A (50/60Hz)
Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)
Range/Resolution/Accuracy(50/60Hz)
AC 300mA/0.1mA/±1.5%rdg±8dgt
AC 3A/0.001A/±1.5%rdg±8dgt
AC 30A/0.01A/±1.5%rdg±8dgt
AC 300A/0.1A/±1.5%rdg±8dgt
AC 3000A/1A/±1.5%rdg±8dgt
Max Jaw Opening capability: 108mm (108x128mm)
Filter functionLow pass filter : 150Hz
Sampling: 2 times/sec
DCmV output accuracy: ±1.5% of Full Scale.
Withstanding Voltage: AC 3700V, 1 minute
Limitation of circuit voltage: Less than AC 600V
Operating Temperature: 0 - 40℃, less than 80%RH (Without condensation)
Storage Temperature: -10 - 60℃, less than 70%RH (Without condensation)
Power supply: 1.5V battery (UM-4 or AAA size) × 2
Power consumption: Approx. 6mW
Battery life: Approx. 200 hours continuous
Size: 194(W) x 341.5(H) x 52(D) mm
Weight: Approx. 1.9kgs
