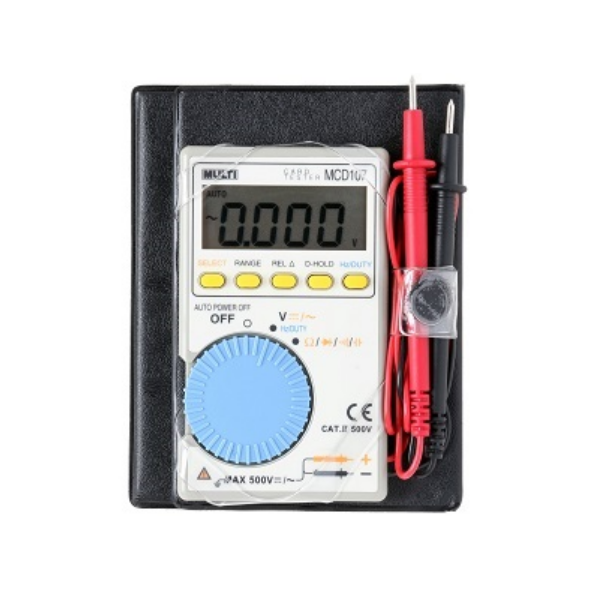

MULTI MCD-107 Pocket Type Digital Multimeter
Storage Temperature: -10～50℃, < 70%RH (Without condensation)
Size and Weight: 99(H)×59(W)×8.6(D)mm
Accuracy: (23±5℃, < 80%RH )
Function/Range/Accuracy/Input Resistance:
DC Voltage/400.0mV/±(0.7%rdg+3dgt)/More than 100MΩ
DC Voltage/4.000V/±(1.3%rdg+3dgt)/Approx.11MΩ
DC Voltage/40.00V/±(1.3%rdg+3dgt)/Approx.10MΩ
DC Voltage/400.0V/±(1.3%rdg+3dgt)/Approx.10MΩ
DC Voltage/500V/±(1.3%rdg+3dgt)/Approx.10MΩ
AC Voltage/4.000V/±(2.3%rdg+10dgt)/Approx.11MΩ
AC Voltage/40.00V/±(2.3%rdg+10dgt)/Approx.10MΩ
AC Voltage/400.0V/±(2.3%rdg+5dgt)/Approx.10MΩ
AC Voltage/500V/±(2.3%rdg+5dgt)/Approx.10MΩ
Resistance/400.0Ω,4.000KΩ,40.00KΩ,400.0KΩ/±(2.0%rdg+5dgt)/Open circuit voltage Approx.0.4V
Resistance/4.000MΩ/±(5.0%rdg+5dgt)/Open circuit voltage Approx.0.4V
Resistance/40.00MΩ/±(10%rdg+5dgt)/Open circuit voltage Approx.0.4V
Capacitance/40.00nF,400.0nF,4.000μF/±(5.0%rdg+10dgt)/Accuracy is specified after offset
Capacitance/40.00μF,100.0μF/±(10%rdg+15dgt)/Accuracy is specified after offset
Frequency/5.000Hz,50.00Hz,500.0Hz,5.000KHz,50.00KHz/±(0.7%rdg+5dgt)/Sensitivity ( AC sine wave) 5.000Hz～5.000kHz:10Vrms or more 50.00kHz :40Vrms or more
Operating Temperature: 0℃ to 40℃,<80% RH (Non-condensing)
Power supply: Lithium battery CR2032×1
Power consumption: Approx.6mW ( at DCV)
