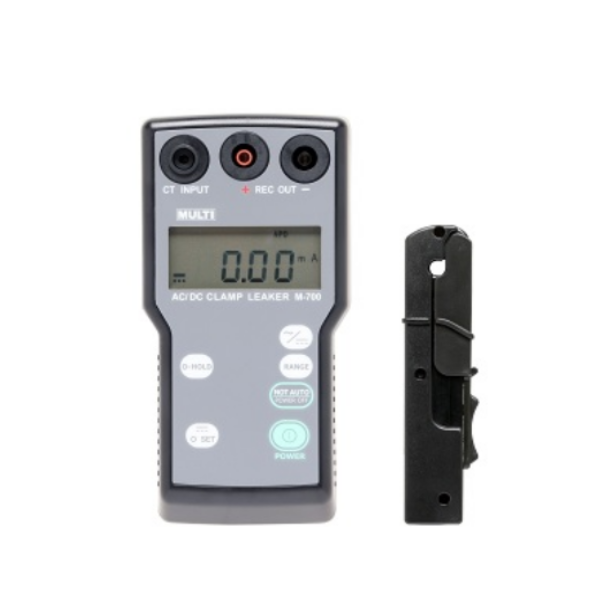

MULTI M-700 Clamp Milliammeter (DC: 100mA/1000mA, AC: 100mA/1000mA/10A)
Withstanding Voltage: AC 3700V/1 minute between CT and outer case
Storage Temperature: -10～60℃, < 70%RH (without condensation)
Accuracy:
DC Current: (Accuracy:23℃±5℃, less than 85%RH)
Range/Measuring Range/Resolution/Accuracy
100mA/0.1～±50.00mA/0.01mA/±1%rdg±5dgt
100mA/±50.01～±99.99mA/0.01mA/±1%rdg±10dgt
1000mA/1～±300mA/0.1mA/±1%rdg±10dgt
1000mA/±300.1～±700mA/0.1mA/±2%rdg±10dgt
1000mA/±700.1～±999.9mA/0.1mA/±3%rdg±10dgt
AC Current (Accuracy:23℃±5℃, less than 85%RH)
Range/Measuring Range/Resolution/Accuracy
100mA/0～99.99mA/0.01mA/±1%rdg±10dgt(50/60Hz)
1000mA/0～999.9mA/0.1mA/±1%rdg±10dgt(50/60Hz)
10A/0～9.999A/0.001A/±1%rdg±10dgt(50/60Hz)
Max. input current: AC 20A
Operating Temperature: 0～50℃, < 85%RH (without condensation)
Power supply: LR6, AM-3 or AA size battery×4
Dimension: Main unit:78(W)×155(H)×32(D)mm, Approx. 280g 19(W)×133(H)×28(D)mm; CT (CTP-05DC):1.2m lead, Approx. 100g
Jaw opening capability: 5mmφ
Limitation of circuit voltage: Less than AC/DC 600V
Accessories: Carrying case, Batteries, Instruction manual
Current Consumption: Approx. 9mA (Approx. 200 hours continuous use)
Sampling rate: 1 time/sec. for DC and 6 times/sec. for AC
Measuring function: AC/DC leakage current
Measuring ranges: DC 100mA/1000mA, AC 100mA/1000mA/10A (45Hz～65Hz)
