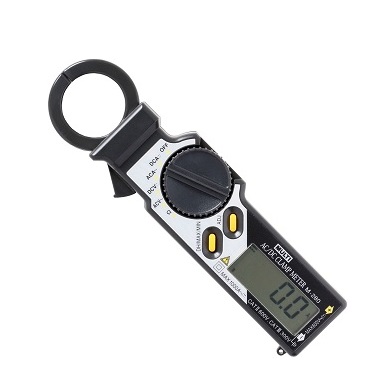

MULTI M-280 ເຄື່ອງທົດສອບການຍຶດຕິດດິຈິຕອນຂະໜາດນ້ອຍ (1000A, 500V, 600Ω)
Display: 4-digit LCD, max. reading of 9999
Measuring ranges:
AC Current:1000A
DC Current:1000A
AC Voltage:500V
DC Voltage:500V
Resistance:600Ω
Accuracy: (23℃±5℃, 80%RH or less)
Range/Input range/Accuracy:
AC Current (ACA)/0～600A/±1.5%rdg±8dgt
AC Current (ACA)/600.1～999.9A/±3%rdg±8dgt
DC Current (DCA)/0～±600A/±1.5%rdg±6dgt
DC Current (DCA)/±600.1～±999.9A/±3%rdg±6dgt
AC Voltage (ACV)/0～500V/±1.0%rdg±8dgt
DC Voltage (DCV)/0～500V/±1.0%rdg±6dgt
Resistance (Ω)/0～600Ω/±1.5%rdg±8dgt
Inside diameter of CT: φ30mm
Limitation of circuit voltage: Less than AC/DC 600V
Operating Temperature: 0℃ ～ 40℃ < 80%RH (without condensation)
Storage Temperature: -10℃ ～ 60℃ < 70%RH (without condensation)
Withstanding Voltage: AC 3700V 1 minute max. (Between the core of CT and outer case)
Power supply: LR-44×2
Battery life: Approx. 6 hours continuous
Power consumption: Approx. 12mW
Size: 44.5(W)×177(H)×24(D)mm
Weight: Approx. 95g
Accessories:
Soft case: 1
Instruction manual: 1
Test lead: 1
Batteries LR-44(1.55V): 2
