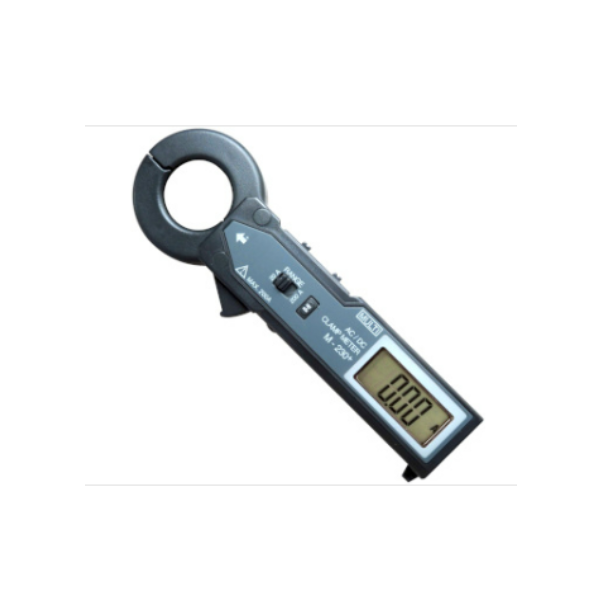

MULTI M-230+ ເຄື່ອງທົດສອບ Clamp Digital Mini AC/DC (23mmφCT, 20A/200A)
Display: 3.5 digit LCD, max. reading of 1999
Measuring ranges: AC/DC 20A/200A
Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)
Range/Resolution/Accuracy:
DC 20 A/0.01A/±1.0％rdg±3dgt
DC200 A/0.1A/±1.5％rdg±3dgt(0~150.0A)
DC200 A/0.1A/±2.5％rdg±3dgt(150.1~199.9A)
AC 20 A/0.01A/±1.0％rdg±5dgt(50/60Hz)
AC 20 A/0.01A/±1.5％rdg±5dgt(40～49Hz/61～500Hz)
AC 20 A/0.01A/±2.0％rdg±5dgt(501～1kHz)
AC 200 A/0.1A/±1.5％rdg±5dgt(2.0~150.0A 50/60Hz)
AC 200 A/0.1A/±2.0％rdg±5dgt(2.0~150.0A 40～49Hz/61～1kHz)
AC 200 A/0.1A/±2.5％rdg±5dgt(150.1~199.9A 50/60Hz)
AC 200 A/0.1A/±3.5％rdg±5dgt(150.1~199.9A 40～49Hz/61～1kHz)
Inside diameter of CT: φ23mm
Withstanding voltage: AC 2000V/1 minute
Sampling rate: 2 times/sec
Operating temperature: -10～50℃, < 80%RH (without condensation)
Power supply: LR-44 battery×2
Dimension: 48(W)×146(H)×23(D)mm
Weight: Approx. 100g
Accessories: Soft case, Batteries, Instruction manual
