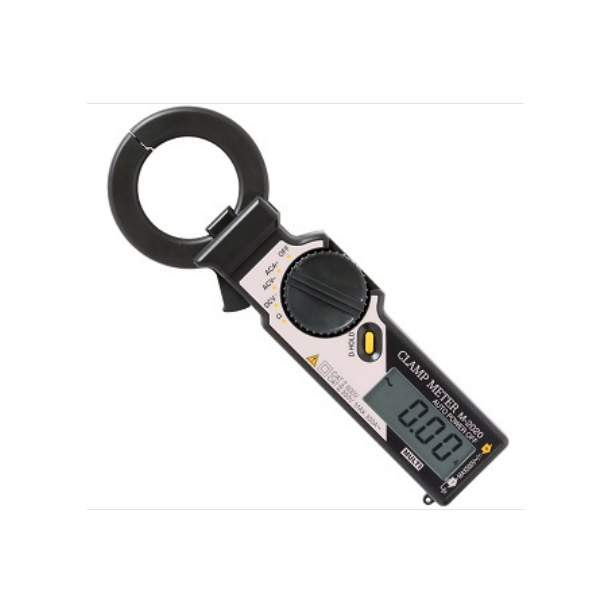

MULTI M-2020 ເຄື່ອງທົດສອບການຍຶດຕິດດິຈິຕອນຂະໜາດນ້ອຍ (30A/300A)
Withstanding Voltage: AC 3700V 1 minute max. (Between the core of CT and outer case)
Storage Temperature: -10℃ to ～ 60℃ < 70%RH ( without condensation )
Accuracy (23℃±5℃ 80%RH or less)
Operating Temperature: 0℃ to ～ 40℃ < 80%RH ( without condensation )
Power supply: SR-44(1.55V)×2 or LR-44×2
Power consumption: 5mW
Weight: Approx. 100g
Measuring Range:
AC Current:30A/300A (2 ranges auto)
AC Voltage:3V～500V (4 ranges auto, 50/60Hz)
DC Voltage:300mV～500V(5 ranges auto)
Resistance:300Ω/3000Ω (2 ranges auto)
Jaw opening capability: 40mmφ
Limitation of circuit voltage: Less than AC 500V
Size: 64(W)×193(H)×24(D)mm
Batteries: LR-44(1.55V):2
Display: 3.5 digit LCD, max. reading of 3200
Auto power offApprox. 10 minutes later after the power on.
AC Current (ACA): 0～300A:±2%rdg±8dgt
AC Voltage(ACV): 0～500V:±2.3%rdg±6dgt
DC Voltage (DCV): 0～500V:±1.3%rdg±3dgt
Resistance (Ω): 0～3000Ω:±2%rdg±5dgt
Sampling time: 2 times/sec
Battery life: SR-44(200 hours), LR-44(100 hours)
