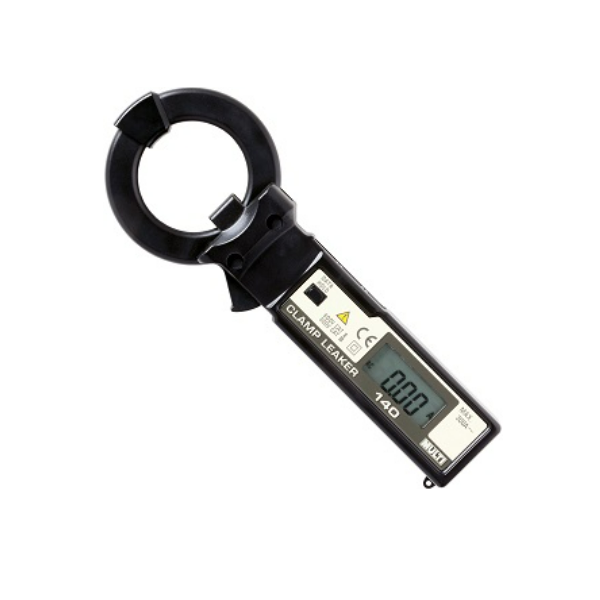

MULTI M-140 Mini AC Leakage Current Clamp Tester (30mA/300mA, 30A/300A)
Range: AC 0～30mA/300mA, 30A/300A, 2 range manual
Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)
AC 30/300mA/0.01mA/±1.2% rdg ± 5dgt
AC 30/300A/0.01A/0～200A : ±1.2% rdg ± 5dgt
200～250A : ±3.0% rdg ± 5dgt
250～300A : ±5.0% rdg ± 5dgt
Jaw opening capability: 40mmφ
Display: 3.5 digit LCD, max. reading of 3200
Operating Temperature: 0℃ to 40℃, 80%RH max. ( Without condensation )
Storage Temperature: -10℃ to 60℃, 70%RH max. (Without condensation )
Auto power off: Approx. 10 minutes later after power on
Power supply: 1.55V (SR-44, LR-44)×2
Battery life: Approx. 50 hours(LR-44)
Power consumption: 5mW
Withstanding Voltage: AC 3700V 1 minute max
Size: 64(W)×162(H)×23(D)mm
Weight: Approx. 125g
Sampling:
2 times/sec (Digital display)
12 times/sec (Bar graph display)
Accessories:
Soft case:1
Instruction manual:1
Batteries LR-44(1.55V):2
