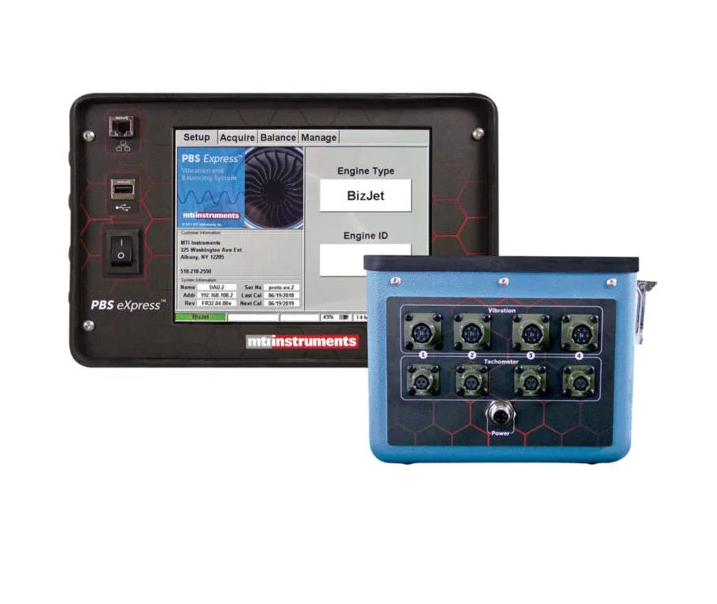

MTI instrument PBS eXpress ການວັດການສັ່ນແລະການທົດສອບການທົນດົນເຄື່ອງຈັກ
BALANCING CAPABILITIES:
User Selectable: One Shot (stored influence coefficient); Trial Weight (baseline run and trial weight run)
Speeds: 1-20 speeds simultaneously (configurable speed points)
Channels: 1 to 4 channels simultaneously
Planes: 1 or 2 balance planes simultaneously
Weights: Up to 20 standard weight classes, user configurable
Types: Transient Balancing and Fixed Speed Point
SPEED:
Input Channels: 2 standard, up to 4 optional
Input Voltage Range: 200V Pk-Pk
Speed Range: 150 to 75,000 RPM
Speed Accuracy: Better than 0.02%
Phase Accuracy: 1° typical
Types: Any 1/REV or embedded odd-tooth type signal (N/REV) (including short/long/offset tooth, optical, and tach ratio types)
VIBRATION:
Input Channels: 2 standard, up to 4 optional
Input Voltage Range: 20V Pk-Pk
Frequency Range: 5 to 30 kHz
Tracked Amplitude Accuracy: Better than +/- 1%
Tracked Components: N1, N2, N3 + up to 4 customizable tracked orders
ADDITIONAL SPECIFICATIONS:
Connectors: Industry compatible MS-type cannon plugs, universally compatible.
Through-put: 4 spectra/sec
Power: Li-Ion Battery, up to 5 hr run time, 2.5 hr charge time. Able to operate while charging
Display: 8.4” Color TFT display with Capacitive Touchscreen
Operating Temperature: 0-50°C operation (battery charging stops at 45°C)
Dimensions: 11.5″w x 7″d x 7″h (29.2 cm x 17.78 cm x 17.78 cm)
Weight: 9.8 lbs (4.45 kg)
